PMS-45JC10M — 4.5 mm FA lens
PMS-45JC10M 4.5 mm fa lens in the 1/1.8-inch FA lenses range. Focal length 4.5 mm; iris range F2.8–16. Focus range 0.1 m–∞.
- Focal Length
- 4.5 mm
- Iris Range
- F2.8–16
- Sensor Format
- 1/1.8"
- Lens Mount
- C-mount
- Focus Range
- 0.1 m–∞
Complete specifications
| Sensor Format | 1/1.8" |
|---|---|
| Focal Length | 4.5 mm |
| Iris Range | F2.8–16 |
| Distortion at 1/1.8 inch | -1.2%@y=4.5 mm |
| Distortion at 1/2 inch | 1.08%@y=4.0 mm |
| Back Focal Length | 8.4 mm |
| Lens Mount | C-mount |
| Focus Range | 0.1 m–∞ |
| Operating Temperature | -20 °C to +60 °C |
| FOV at 1/1.8 inch (D×H×V) | 89.0°×81.9°×52.3° |
| FOV at 1/1.2 inch (as printed) | 89.0°×81.9°×52.3° |
| Resolution Rating | 5 MP (model datasheet); 10 MP (general catalog) |

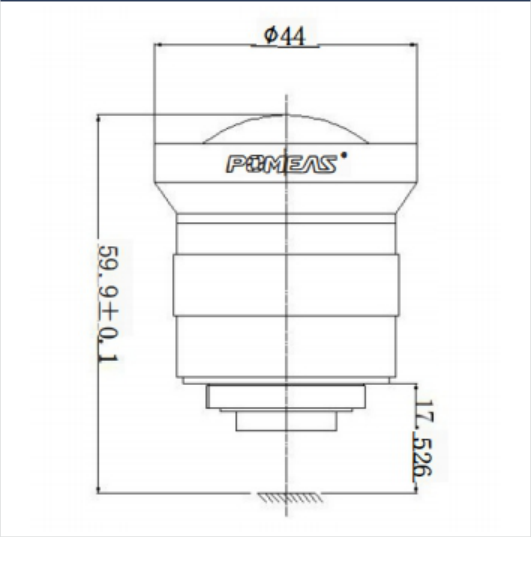

Technical drawings
