PMS-23MC — 22.5 mm FA lens
PMS-23MC 22.5 mm fa lens in the 2 MP · 2/3-inch FA lens range. Focal length 22.5 mm; iris range F1.4-11. Focus range 0.1m-∞.
- Focal Length
- 22.5 mm
- Iris Range
- F1.4-11
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.1m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 22.5 mm |
| Iris Range | F1.4-11 |
| Focus Range | 0.1m-∞ |
| Distortion | -0.44%@y = 5.5mm-∞ |
| Back Focal Length | 13.6mm |
| Lens Mount | C-mount |
| Filter Thread | M30.5×0.5mm |
| Field of View (D×H×V) | 2/3" 22.1°×16.7° |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 2 MP |

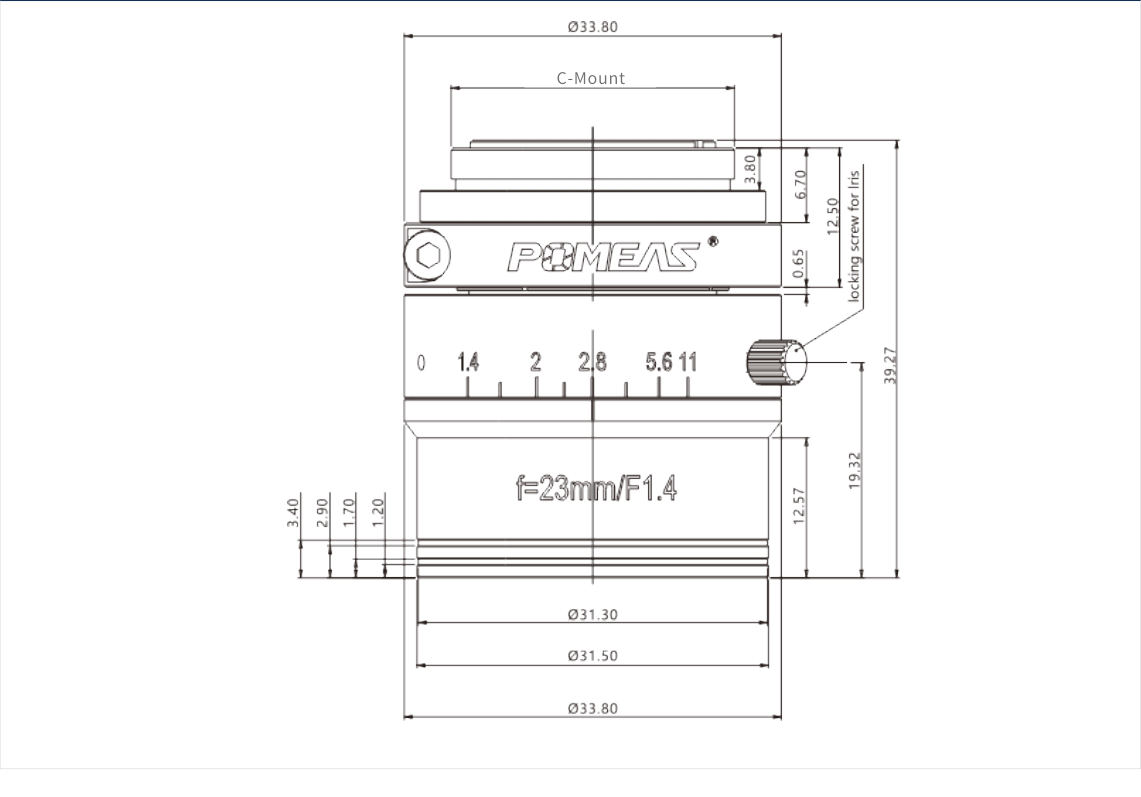

Technical drawings
