PMS-1612MC — 16.33 mm FA lens
PMS-1612MC 16.33 mm fa lens in the 1 MP · 2/3-inch FA lens range. Focal length 16.33mm; iris range F12. Focus range 0.30m-∞.
- Focal Length
- 16.33mm
- Iris Range
- F12
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.30m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 16.33mm |
| Iris Range | F12 |
| Focus Range | 0.30m-∞ |
| Distortion | -1.00%@y = 5.5mm |
| Back Focal Length | 12.67mm |
| Lens Mount | C-mount |
| Filter Thread | M30.5×0.5mm |
| Field of View (D×H×V) | 2/3" 30.4°×22.9° |
| Operating Environment | Temperature-10°C~+50°C; Humidity : 30-80% (no Condensation) |
| Resolution Rating | 1 MP |

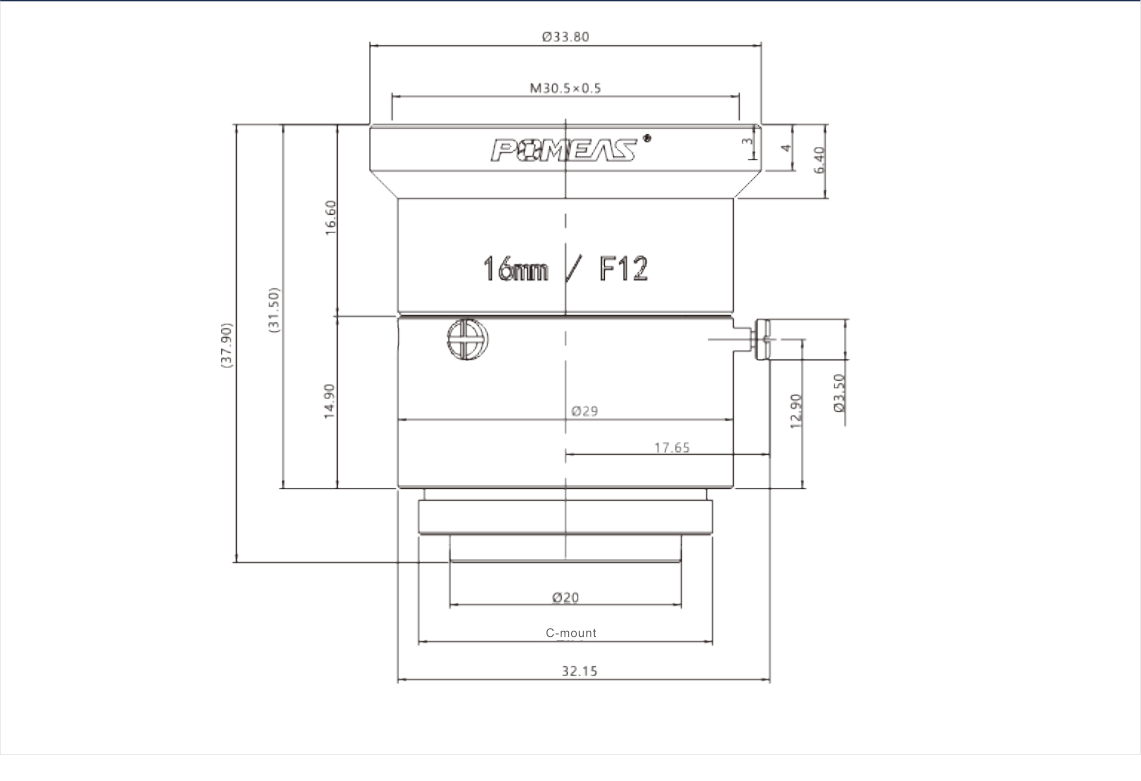

Technical drawings
