Camera finder

Build a camera shortlist

Showing cameras built around IMX461. Refine the shortlist with your application requirements.

646

Camera models

Cooled

216

Global shutter

Matched

Results

4 cameras matched

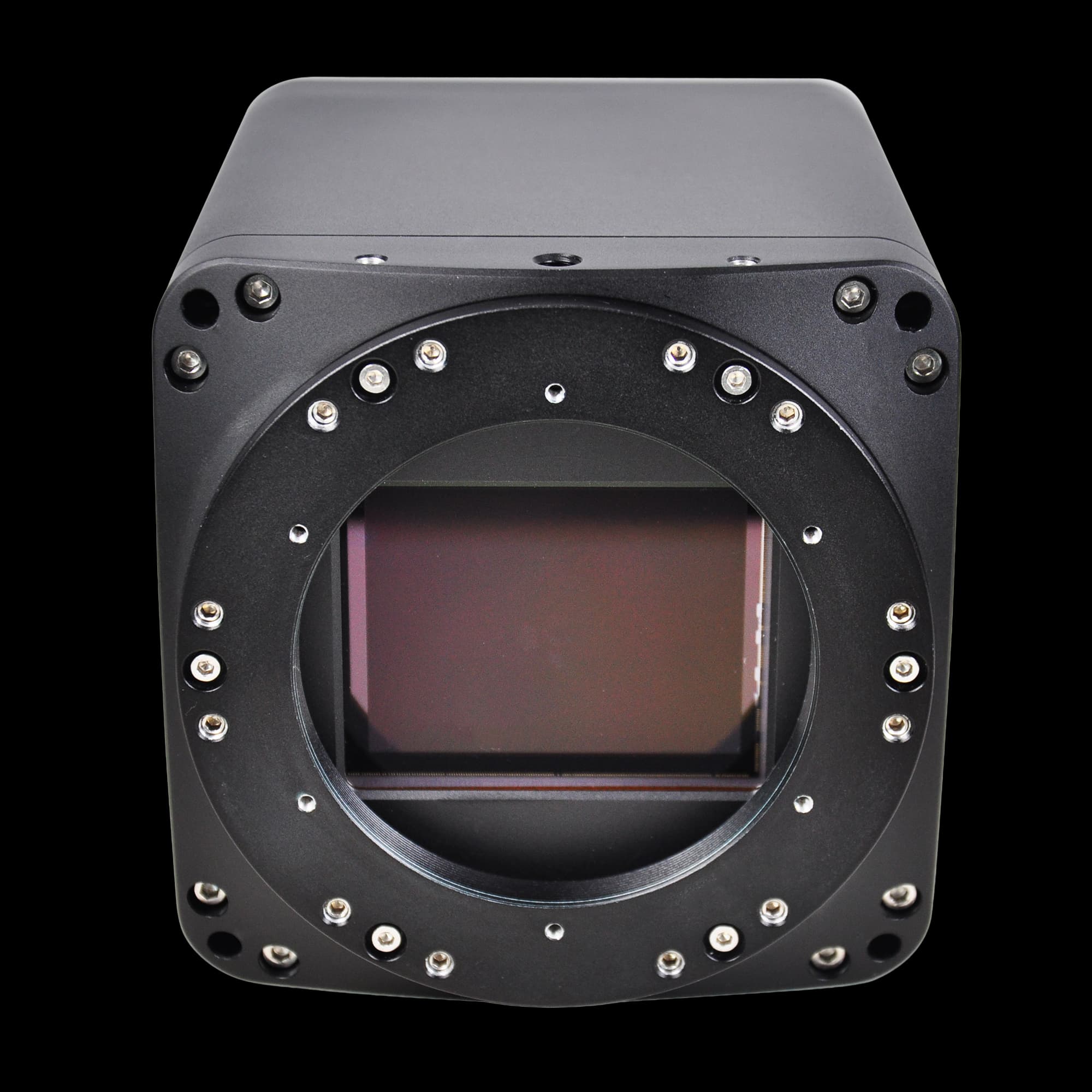

Scientific sCMOS CameraMatch 1

MAX-Sony

Sensor: IMX461AQR (C, RS)
Resolution: 102 MP (11648×8742)
Pixel size: 3.76 µm × 3.76 µm
Frame rate: 8.7 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970
Mount: Model-specific
Interface: 10GigE
Sensor size: 43.80 mm × 32.87 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Scientific sCMOS CameraMatch 1

MAX-Sony

Sensor: IMX461AQR (C, RS)
Resolution: 102 MP (11648×8742)
Pixel size: 3.76 µm × 3.76 µm
Frame rate: 3.5 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970
Mount: Model-specific
Interface: USB3.0
Sensor size: 43.80 mm × 32.87 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Scientific sCMOS CameraMatch 1

MAX-Sony

Sensor: IMX461ALR (M, RS)
Resolution: 102 MP (11648×8742)
Pixel size: 3.76 µm × 3.76 µm
Frame rate: 8.7 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970
Mount: Model-specific
Interface: 10GigE
Sensor size: 43.80 mm × 32.87 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Scientific sCMOS CameraMatch 1

MAX-Sony

Sensor: IMX461ALR (M, RS)
Resolution: 102 MP (11648×8742)
Pixel size: 3.76 µm × 3.76 µm
Frame rate: 3.5 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970
Mount: Model-specific
Interface: USB3.0
Sensor size: 43.80 mm × 32.87 mm
Band: 380–700 nm (visible)
Shutter: Rolling
