Showing cameras built around IMX249. Refine the shortlist with your application requirements.

650
Camera models
71
Cooled
216
Global shutter
7
Matched

Results

7 cameras matched

E3CMOS02300KPB
Microscopy CameraGlobal shutterMatch 1
E3CMOS02300KPB

E3CMOS

Sensor
IMX249 (C,GS)
Resolution
2.3M (1920×1200)
Pixel size
5.86 µm × 5.86 µm
Frame rate
30 fps @ 1920×1200
Mount
C-mount
Interface
USB3.0
Sensor size
11.25 mm × 7.03 mm
Band
380–700 nm (visible)
Shutter
Global
GPM174M
Astronomy CameraGlobal shutterMatch 1
GPM174M

GPM guide

Sensor
Sony IMX249 monochrome CMOS — Pregius global-shutter monochrome CMOS
Resolution
2.3 MP (1920 × 1200)
Pixel size
5.86 µm
Frame rate
16 fps
Mount
1.25-inch telescope nosepiece / CS-mount
Interface
USB 2.0 + ST4
Sensor size
1/1.2-inch, 11.3 × 7.03 mm
Band
380–1100 nm
Shutter
Global

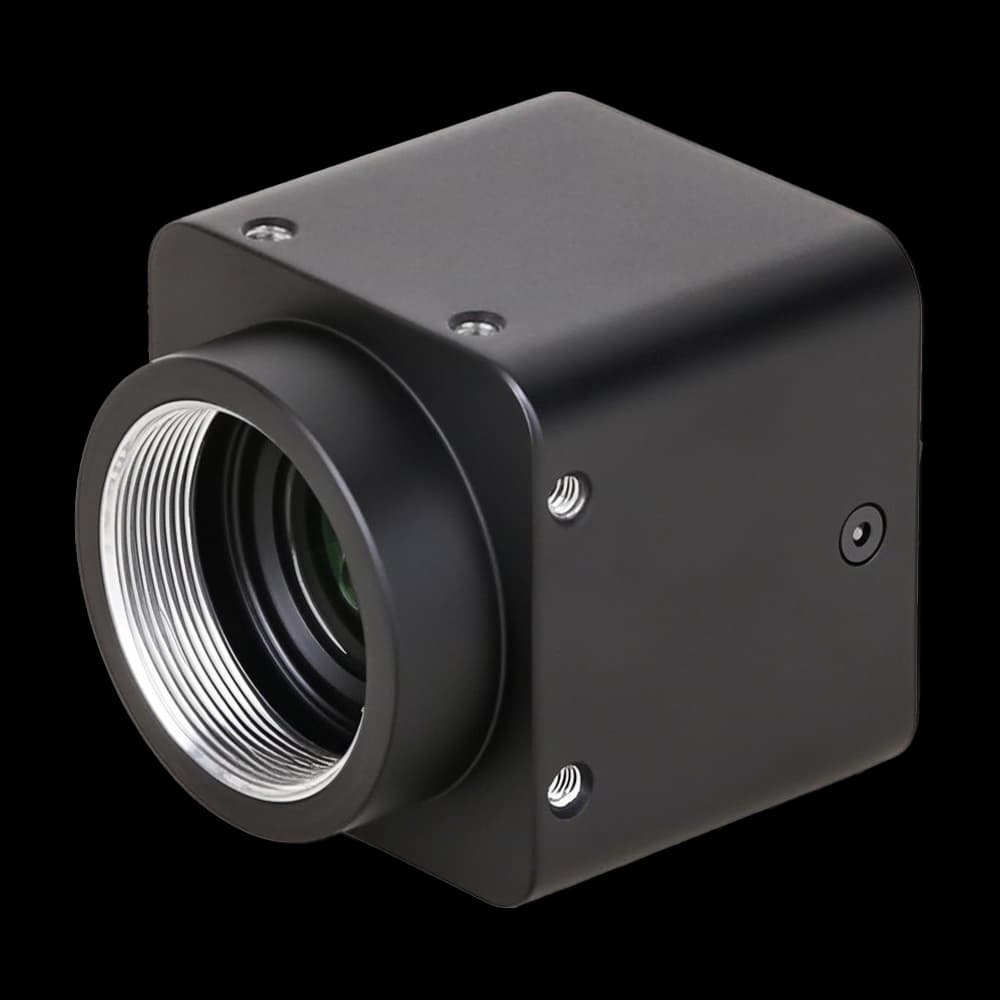

I3CMOS02300KMB
Industrial / Analytical CameraGlobal shutterMatch 1
I3CMOS02300KMB

I3CMOS

Sensor
Sony IMX249LLJ
Resolution
2.3 MP (1920×1200)
Pixel size
5.86 µm × 5.86 µm
Frame rate
30 fps @ 1920×1200
Mount
C-mount
Interface
USB3.0
Sensor size
11.25 mm × 7.03 mm
Band
380–700 nm (visible)
Shutter
Global
I3ISPM02300KPB
Industrial / Analytical CameraGlobal shutterMatch 1
I3ISPM02300KPB

I3ISPM

Sensor
Sony IMX249LQJ
Resolution
2.3 MP (1920×1200)
Pixel size
5.86 µm × 5.86 µm
Frame rate
30 fps @ 1920×1200
Mount
C-mount
Interface
USB3.0
Sensor size
11.25 mm × 7.03 mm
Band
380–700 nm (visible)
Shutter
Global
IUA2300KMB
Industrial / Analytical CameraGlobal shutterMatch 1
IUA2300KMB

IUA

Sensor
Sony IMX249LLJ
Resolution
2.3MP (1920×1200)
Pixel size
5.86 µm × 5.86 µm
Frame rate
30 fps @ 1920×1200
Mount
C-mount
Interface
USB3.0 (USB3.1 GEN1)
Sensor size
11.25 mm × 7.03 mm
Band
380–700 nm (visible)
Shutter
Global
IUA2300KPB
Industrial / Analytical CameraGlobal shutterMatch 1
IUA2300KPB

IUA

Sensor
Sony IMX249LQJ
Resolution
2.3MP (1920×1200)
Pixel size
5.86 µm × 5.86 µm
Frame rate
30 fps @ 1920×1200
Mount
C-mount
Interface
USB3.0 (USB3.1 GEN1)
Sensor size
11.25 mm × 7.03 mm
Band
380–700 nm (visible)
Shutter
Global

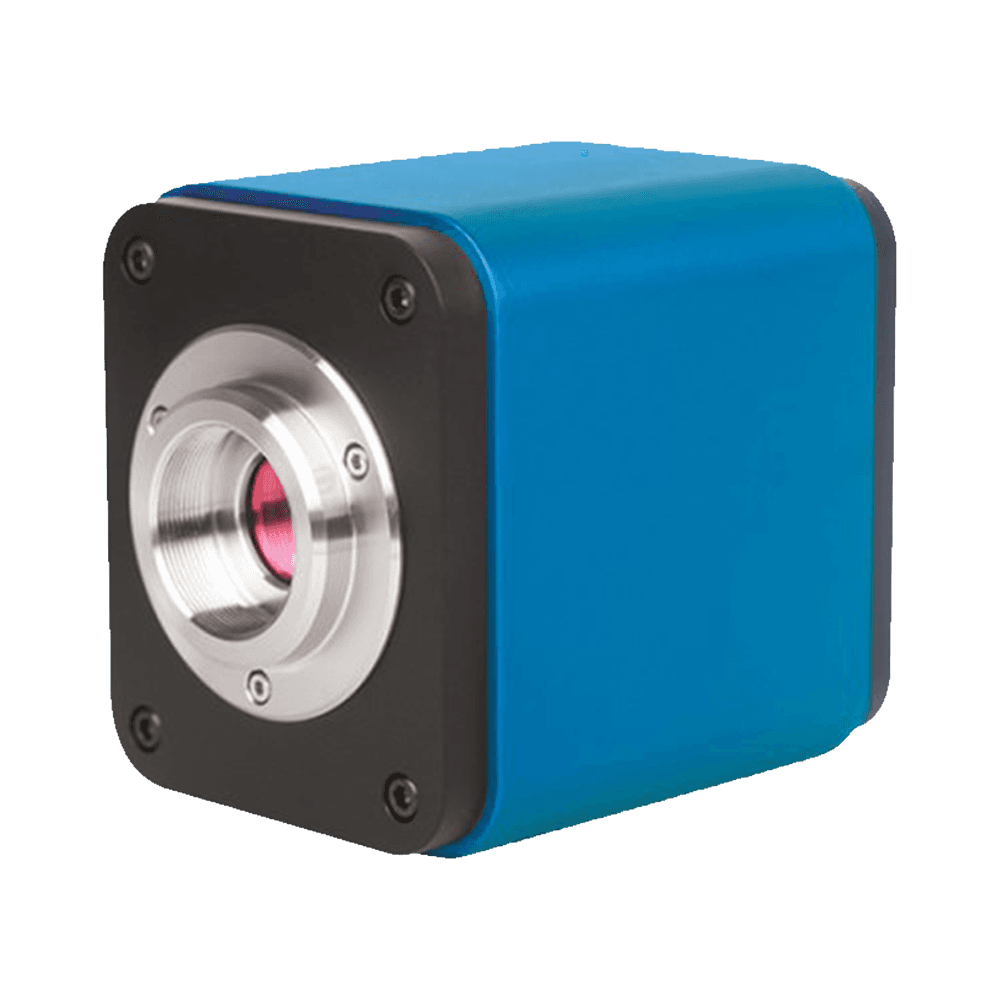

XCAM1080PHE
Multi-Interface CameraGlobal shutterMatch 1
XCAM1080PHE

XCAM1080PHX

Sensor
Sony IMX249(C,GS)
Resolution
2MP (1920×1080)
Pixel size
5.86 μm × 5.86 μm
Frame rate
HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080
Mount
C-mount
Interface
HDMI, Wi-Fi
Sensor size
1/1.2" (11.25×6.33 mm)
Band
380–700 nm (visible)
Shutter
Global
