Opto-Mechanics · UFP series High Sensitivity Fiber Coupling Stages
UFP3C-R

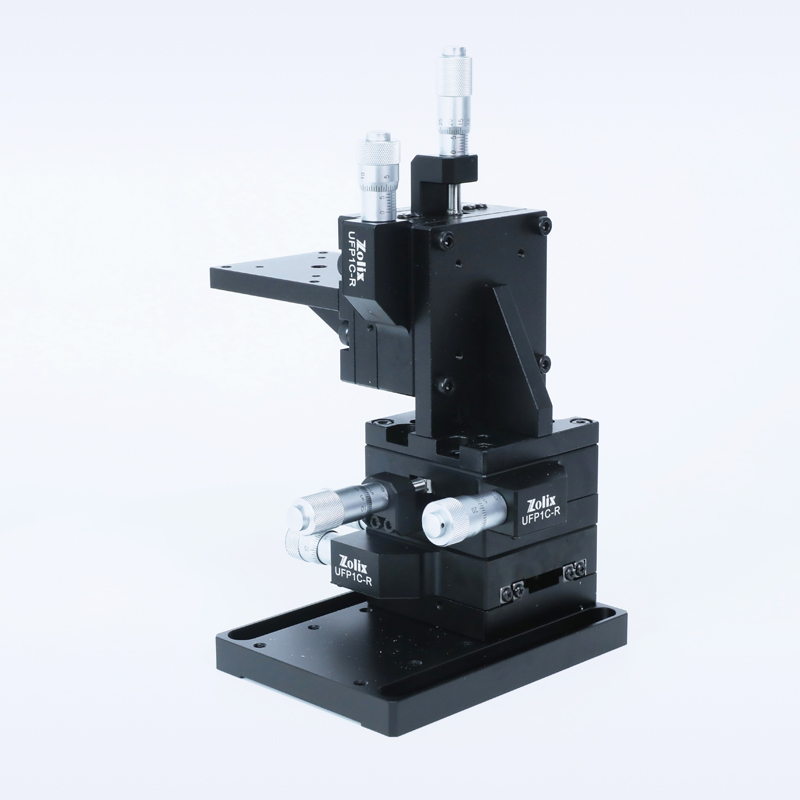

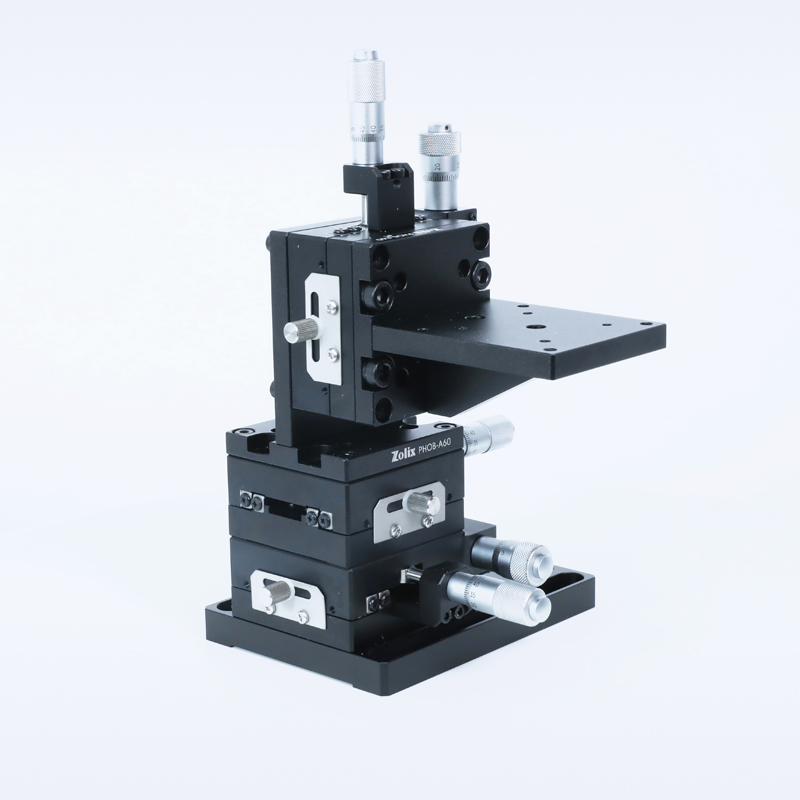

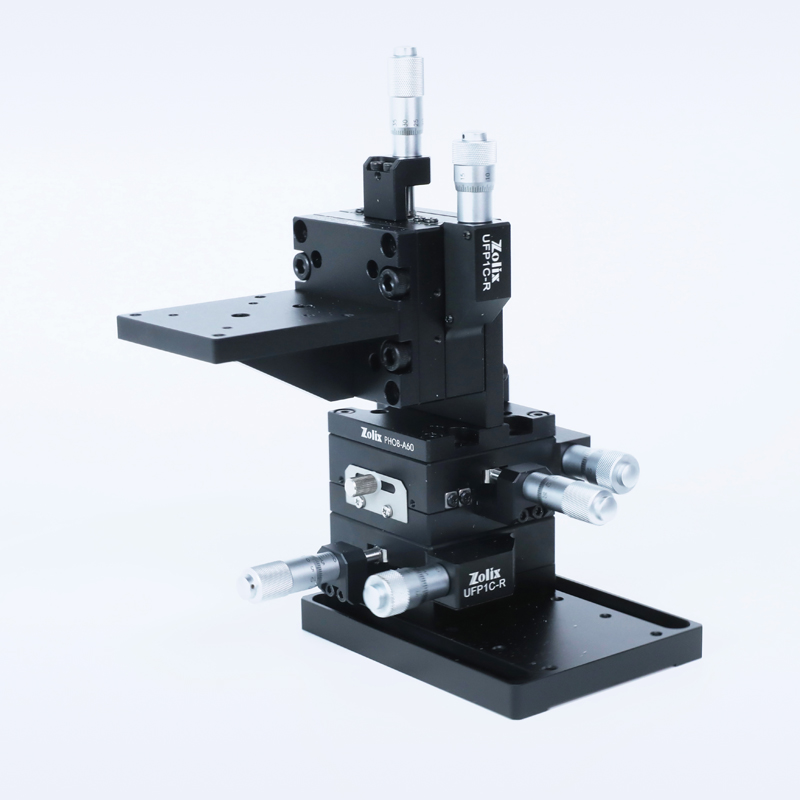

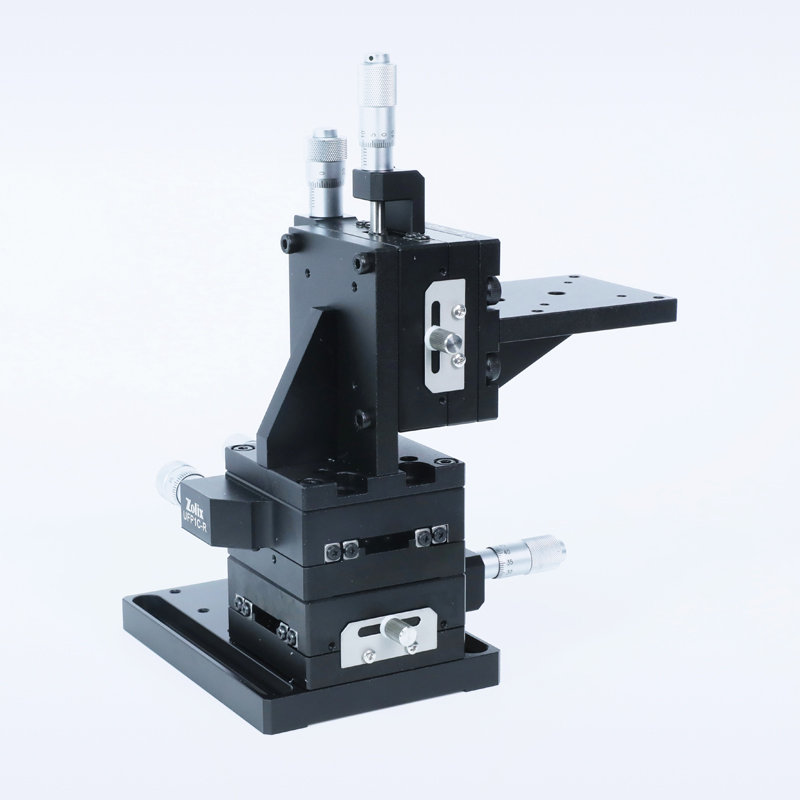

UFP3C-R 3-axis fiber coupling stage
3-axis crossed-roller coupling platform with independent coarse and fine adjustment. Designed for repeatable fiber-to-device, free-space-to-fiber, and waveguide alignment.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range and sensitivity X | Coarse：±6.5mm;Fine：±0.3mm;(Coarse：≤10µm;Fine：≤0.5µm |
|---|---|
| Travel range and sensitivity Y | Coarse：±6.5mm;Fine：±0.3mm;(Coarse：≤10µm;Fine：≤0.5um) |
| Travel range and sensitivity Z | Coarse：±6.5mm;Fine：±0.3mm;(Coarse：≤10µm;Fine：≤0.5µm) |
| Guide mechanism | Crossed-roller guide |
| Drive type | Micrometer |
| Main body material and surface | Black anodized aluminum alloy |
| Weight(Kg) | 1.74 |
| Load capacity(Kg) | 1.5 |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
