USB Motorized Linear Stages
A positioning mechanism converts drive motion into a constrained degree of freedom. Travel and nominal resolution are insufficient on their own: load, stiffness, backlash, repeatability, straightness, encoder placement and controller architecture determine positioning at the payload. Compare configurations using the selection fields documented on each product page.
2 components
Filter by wavelength, fiber and connector in the component finder →

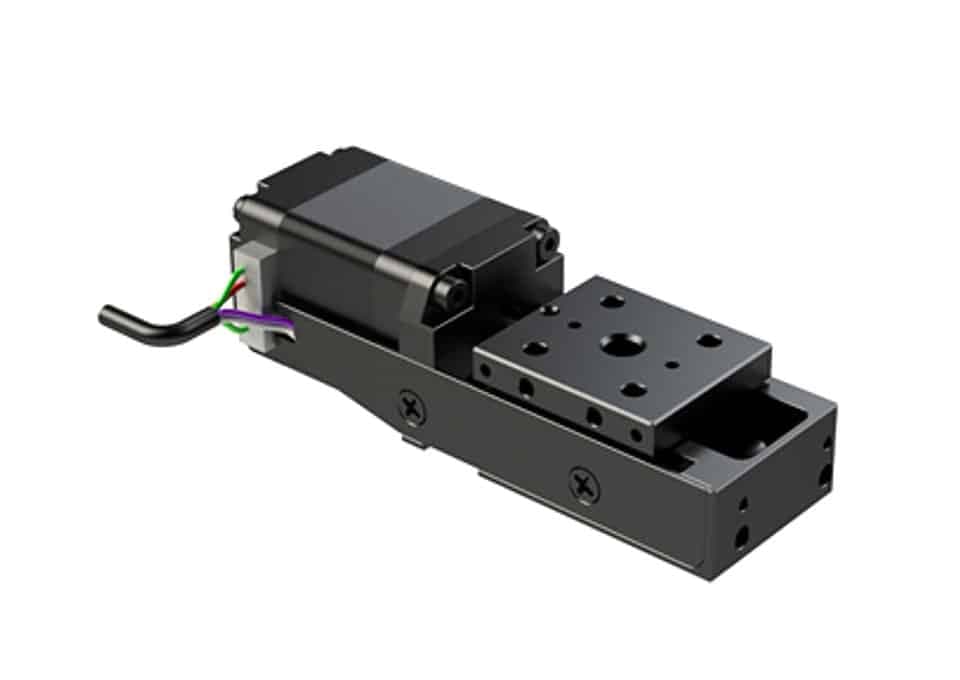

Mini USB Motorized Linear Stages
The MMLS Series Miniature Motorized Stages offer an innovative design that combines submicron precision with user-friendly operation and affordability, making them an ideal choice for programmable motion applications. These stages feature a dual-bearing design to eliminate backlash and a proprietary optical encoder, achieving nanometer-level resolution and submicron repeatability. Each stage connects to a smart motor driver with USB/RS232 interfaces. The controller includes a manual control knob for intuitive operation: pressing it activates manual mode, while rotating it initiates movement, with speed increasing as the knob turns and direction reversing when rotated past the center. An Ethernet control option is available via an additional control box. The system includes a wall-pluggable power supply, a downloadable intuitive GUI, and a command list for custom programming.
TravelPrecisionPackageMoving1 datasheet

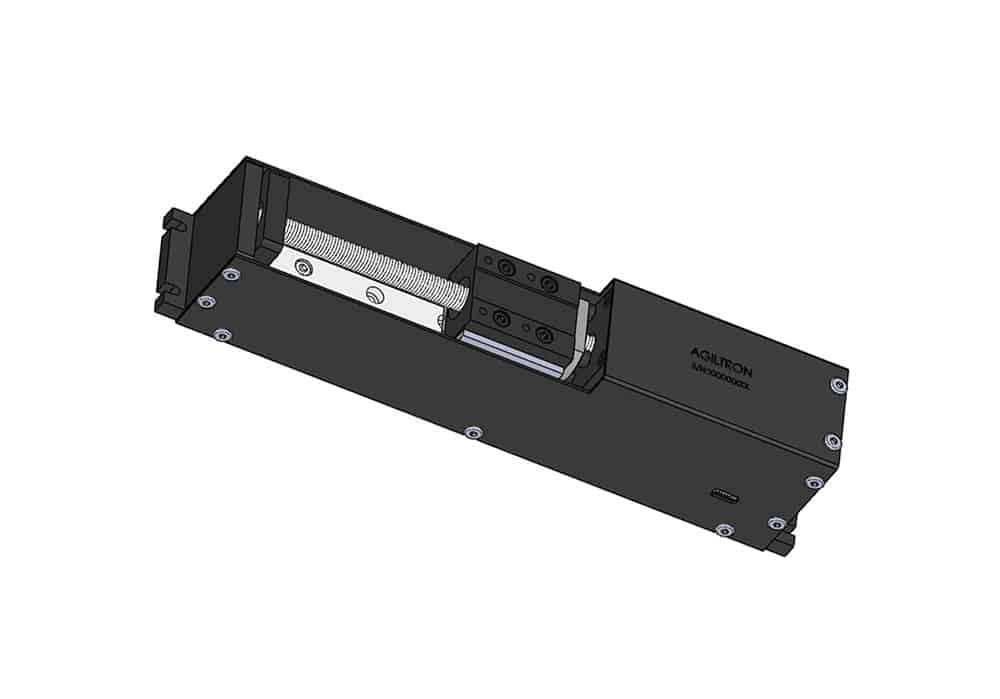

Small USB Motorized Linear Stages
The CMLS Series Miniature Motorized Stages offer an innovative design that combines submicron precision with user-friendly operation and affordability, making them an ideal choice for programmable motion applications. These stages feature a dual-bearing design to eliminate backlash and a proprietary optical encoder, achieving nanometer-level resolution and submicron repeatability. Each stage incorporates a built-in smart motor driver with USB/RS232 interfaces. A manual control knob is integrated into the system: pressing it switches to manual mode, rotating it initiates movement, increasing the speed as it turns, with the direction reversed when rotated past the center. An Ethernet control option is available through an additional control box.
TravelPrecisionPackageMoving2 datasheets
