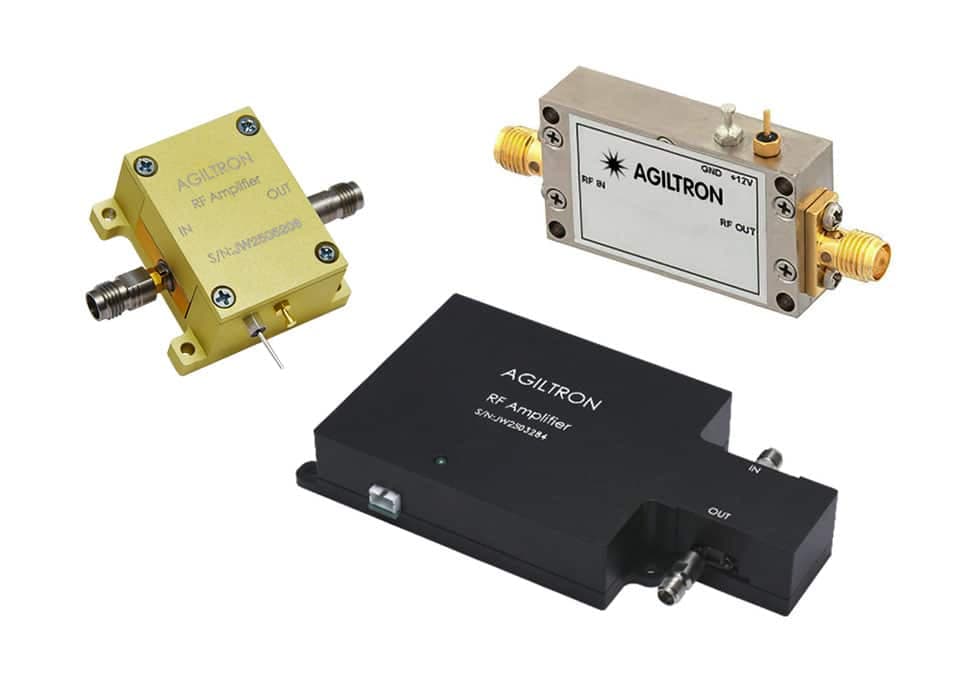

Low Noise RF Amplifier (LNA)
Broadband Low Noise RF Amplifier (LNA)
The LNAM series low noise amplifiers are designed to drive lithium niobate modulators. These amplifiers enhance the RF input signal to reach modulator’s Vp at high frequencies. They use 50 Ohm SMA connectors and operate within a frequency range of 50 kHz to 50 GHz.We provide cost-effective low-noise amplifiers with frequencies from 0.01-67GHz, a gain of 20 to 60dB, a peak of +5 to +27 dBm, and connectors from SMA of 1.85mm. We provide cost-effective low-noise amplifiers with frequencies from 0.01-67GHz, a gain of 20 to 60dB, a peak of +5 to +27 dBm, and connectors from SMA of 1.85mm
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
We confirm the exact part number for your configuration on enquiry.
Low Frequency: 0.1GHz · High Frequency: 8GHz · Gain: 12dB · NF: 1.5dB · P1dB: 10dBm · Power Supply: No · Module: No
Specifications
Broadband Low Noise RF Amplifier (LNA)
| Driver type | Dual-channel broadband low-noise RF amplifier (DLNA series) |
| RF output amplitude | Dual 4.5 Vpp outputs |
| Frequency range | 50 kHz ~ 45 GHz |
| Pulse rise / fall time | 6 ps |
| Added RMS jitter | 0.5 ps |
| Small signal gain | 17 dB (up to 20 dB) to 45 GHz |
| Saturated output power | 20 dBm (P1dB = 17 dBm) |
| Power dissipation | 3.3 W (+12 V DC @ 180 mA) |
| Connectors | SMA RF connectors (8.86 mm) |
| Target modulators | 43 Gb/s optical modulators (LiNbO3 or Electro-Absorption, differential / dual IQ) |
Downloads
Datasheets & documents
- 0.5 18GHz 12 dB LNA
- 1 18GHz 27dB LNA
- 50kHz 100GHz RF amplifier
- Broadband RF Amplifier 3V 45GHz
- Broadband RF Amplifier 7V 45GHz
- Broadband RF Power Amplifier
- Dual 43Gb Broadband Lithium Niobate Driver
- LNA 50GHz
- LNAM 0.05 to 20GHz LNA 0020 1503
- LNAM 100MHz 8GHz 33dB (LNA0008 33)
- LNAM 50kHz 20GHz LNA 0020 2803
- LNAM 100MHz 8Ghz (LNA 0008 1702)
- AT LNA 30X30X14
- AT LNA 45X34X9R5
System integration
Integration and compatibility
Use these checks to connect Broadband Low Noise RF Amplifier (LNA) to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Optical interface and fiber
- Connectors: SMA RF connectors (8.86 mm)
- Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
- Control interface
- Power Supply: No, Yes · Driver type: Dual-channel broadband low-noise RF amplifier (DLNA series)
- Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.
Technical FAQ
Integration questions for Broadband Low Noise RF Amplifier (LNA)
Which fiber and connector does the Broadband Low Noise RF Amplifier (LNA) use?
Connectors: SMA RF connectors (8.86 mm). Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
Does the Broadband Low Noise RF Amplifier (LNA) require a controller?
Power Supply: No, Yes · Driver type: Dual-channel broadband low-noise RF amplifier (DLNA series). Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
