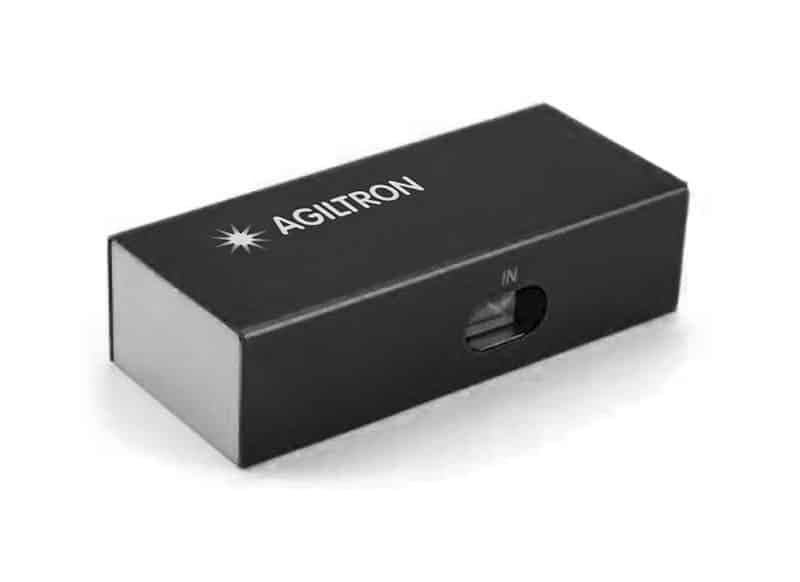

Laser Beam Scanner
The AOBD Acousto-Optic Beam Deflectors offer non-mechanical, high-speed laser beam scanning up to 200 MHz, delivering precise position control with angular resolution in the nanoradian (nRad) range. The solid-state design ensures unmatched reliability and consistency, making these devices ideal for demanding applications requiring agile and accurate beam positioning. The AOBD operates by applying an RF signal to a phased array piezoelectric transducer, generating an acoustic wave inside the crystal. This wave forms a dynamic diffraction grating, which deflects an incoming laser beam at a specific angle when the Bragg condition is satisfied. By adjusting the RF driving frequency, the grating spacing changes, resulting in precise control of the diffraction angle.
Configuration options
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
Part number: AOBD-Q12661111
Material: Quartz · Direction: 1D · Wavelength: 266 nm · Driver: Non
Application context
Application guidance is tied to the configured wavelength, fiber interface and optical-budget fields for this family.
Acousto-Optic Beam Deflectors Quartz UV: Laboratory optical integration depends on preserving the optical budget through the complete path. The 266 nm, 355 nm, 395 nm wavelength specification sets source and detector compatibility.
Acousto-Optic Beam Deflectors Quartz UV: Fiber-optic instrumentation depends on preserving the optical budget through the complete path. The 266 nm, 355 nm, 395 nm wavelength specification sets source and detector compatibility.
System integration
Use these checks to connect Acousto-Optic Beam Deflectors Quartz UV to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Wavelength: 266 nm, 355 nm, 395 nm. Check the Laser Beam Scanner passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Driver: Non, Yes. Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
