Fiber Alignment Stages Configurator
Select from manual UFP stages, multi-axis coupling assemblies, NXP parallel flexure platforms, NFP stainless precision stages, or APFP dovetail accessories — configure your setup and add it directly to your enquiry list.
UFP Series — Coarse + Fine Double Tuning
All UFP1 models: coarse ≤10 µm / fine ≤0.5 µm sensitivity; ±6.5 mm coarse and ±0.3 mm fine travel; 5 kg load capacity. UFP1C adds crossed-roller guide for ≤3 µm dynamic straightness. UFP2T adds 2-axis angular positioning (θx and θy) for fiber end-face alignment.Configured Fiber Alignment Product

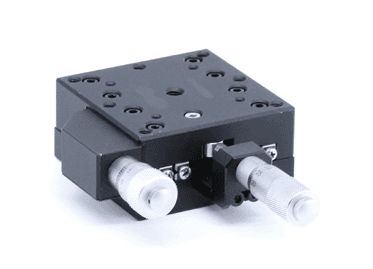

UFP1C-L High-Sensitivity Crossed-Roller Linear Stage
Identified Model Reference
UFP1C-L
Specifications
- Axes: 1 (linear X)
- Surface: 60×60 mm
- Body thickness: 30 mm
- Guide: Crossed-roller (highest precision)
- Coarse travel: ±6.5 mm
- Fine travel: ±0.3 mm
- Coarse sensitivity: ≤10 µm
- Fine sensitivity: ≤0.5 µm
- Dynamic parallelism: ≤10 µm
- Dynamic straightness: ≤3 µm
- Load capacity: 5 kg
- Drive: Micrometer
- Drive location: Left-hand
We will match this configuration with the Zolix fiber alignment range and provide relevant STEP files and a technical solution for your application.
