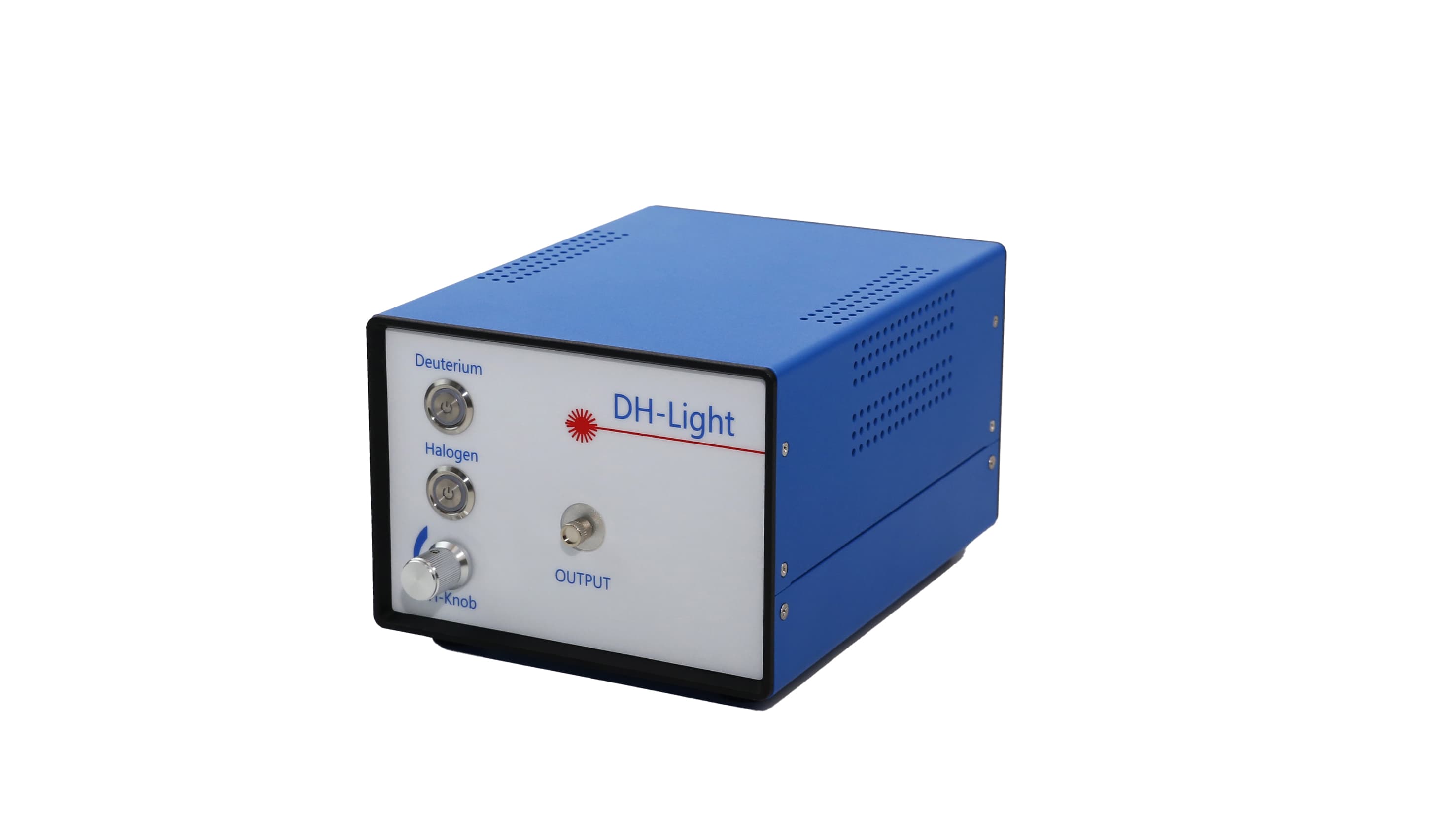

DH-Light Deuterium Halogen Source
Wide 190-2500 nm wavelength range for high-precision analytical instruments.
Product Specifications
DH-Light Deuterium Halogen Source
20 specification rows
Specifications
| Parameter | Value |
|---|---|
| Model | DH-Light |
| Spectrum Range | 190 nm - 400 nm (Deep ultraviolet deuterium lamp) 360-2500 nm (Tungsten halogen lamp) |
| Dimensions (mm) | 201×150×110 |
| Weight | 2.5 kg |
| Energy Consumption | ~78 VA |
| Power Supply Requirements | 85-250V AC 50-60Hz |
| Rated Power of Bulb | 25W (Deuterium lamp), 5W (Tungsten halogen lamp) |
| Lifetime of Bulb | ～1000h (Deuterium lamp) ～2000 h (Tungsten halogen lamp) |
| Connector | SMA905 / FC |
| Output Power (1000um fiber) | 171.6uW (Deuterium lamp) 2.36mW (Tungsten halogen lamp) |
| Warm-up Time | 10 min |
| Working Temperature | 5-35°C |
Specifications
- High Resolution Spectrometer Aurora4000
- Resolution is up to 0.1 nm (FWHM) Applications: Laser wavelength analysis; LED sorting; Chemical research, etc.
- Fiber
- Length: 1m, 2m (optional) Connector: SMA905 Core diameter: 200μm, 400μm (optional)
- 4 Way Cuvette Holder
- Dimensions: 70*70*25mm Optical path: 10*10mm Connector: SMA905 It can be used with cuvette for transmittance and fluorescence detection.
- Optical Signal Collector
- Diameter: 5mm Focal length: 6mm Model: L-UV; Wavelength >200nm Model: L-VIS; Wavelength >350nm
Need this configured?
Share wavelength range, measurement target, detector needs, sample geometry, software and interface requirements, and we will qualify the matching configuration.
