SLE-W

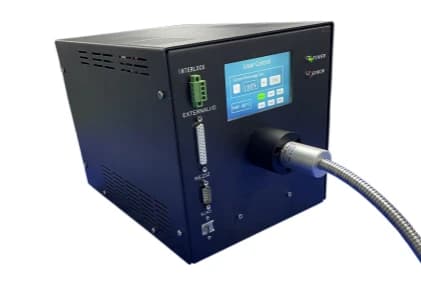

SLE-W white-light engine with filter wheel
A continuous white-light engine with a typical 6500 K color temperature, six automatically switched filter positions and adjustable intensity. The >7.5 W rating is specified with a 5 mm fiber bundle.
Compare the details
Technical specifications
Compare the listed configurations and match the specifications to your setup.
13 specification rows.
White-light engine specifications
13 entries| Parameter | Specification |
|---|---|
| Emitting color | White |
| Typical correlated color temperature | 6500 K |
| Output power | >7.5 W with a 5 mm diameter fiber bundle |
| Drive method | Constant current |
| Intensity control | Variable current; 0-100% in 1% steps |
| Power stability | <1% |
| Operating mode | CW |
| Filter positions | 6; automatic switching |
| Operating temperature | 10-35 °C |
| Power input | 100-240 V AC; 50/60 Hz |
| Cooling | Air cooled |
| Dimensions (reference) | 319.3 x 204 x 215.5 mm |
| Weight (reference) | 7.6 kg |
Spectrum & mechanical references

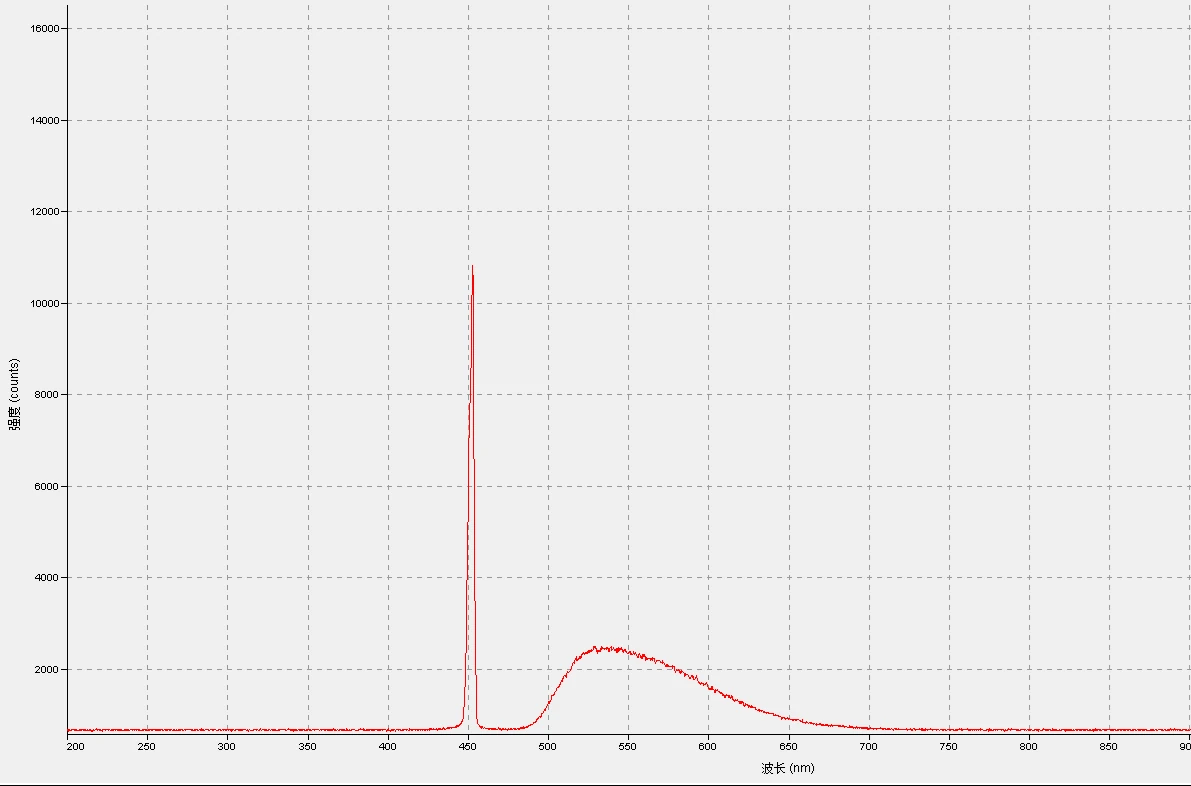

White-light spectrum

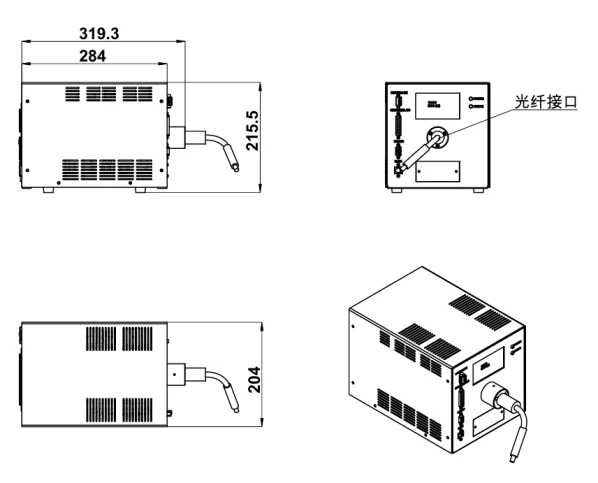

Mechanical drawing
Complete the illumination path
01
Define the spectrum
Start with the absorption, excitation or inspection band. Use the model’s wavelength bin or LED peaks and its FWHM; a family range describes separate configurations.
02
Choose the optical path
Use a fiber-coupled module for remote delivery, a light engine for a controlled source assembly, or a PCB emitter when your instrument provides the driver, optics and cooling.
03
Match power to the interface
For fiber output, choose core diameter and numerical aperture before reading the power column. For engines, check the lightguide or bundle and filter conditions. PCB emitter power is not a fiber-delivered rating.
04
Specify control and cooling
Match current, voltage compliance and heat removal to the exact device. Select TTL, analog or RS232 only where specified. Include mounting, connector and synchronization requirements in your enquiry.
