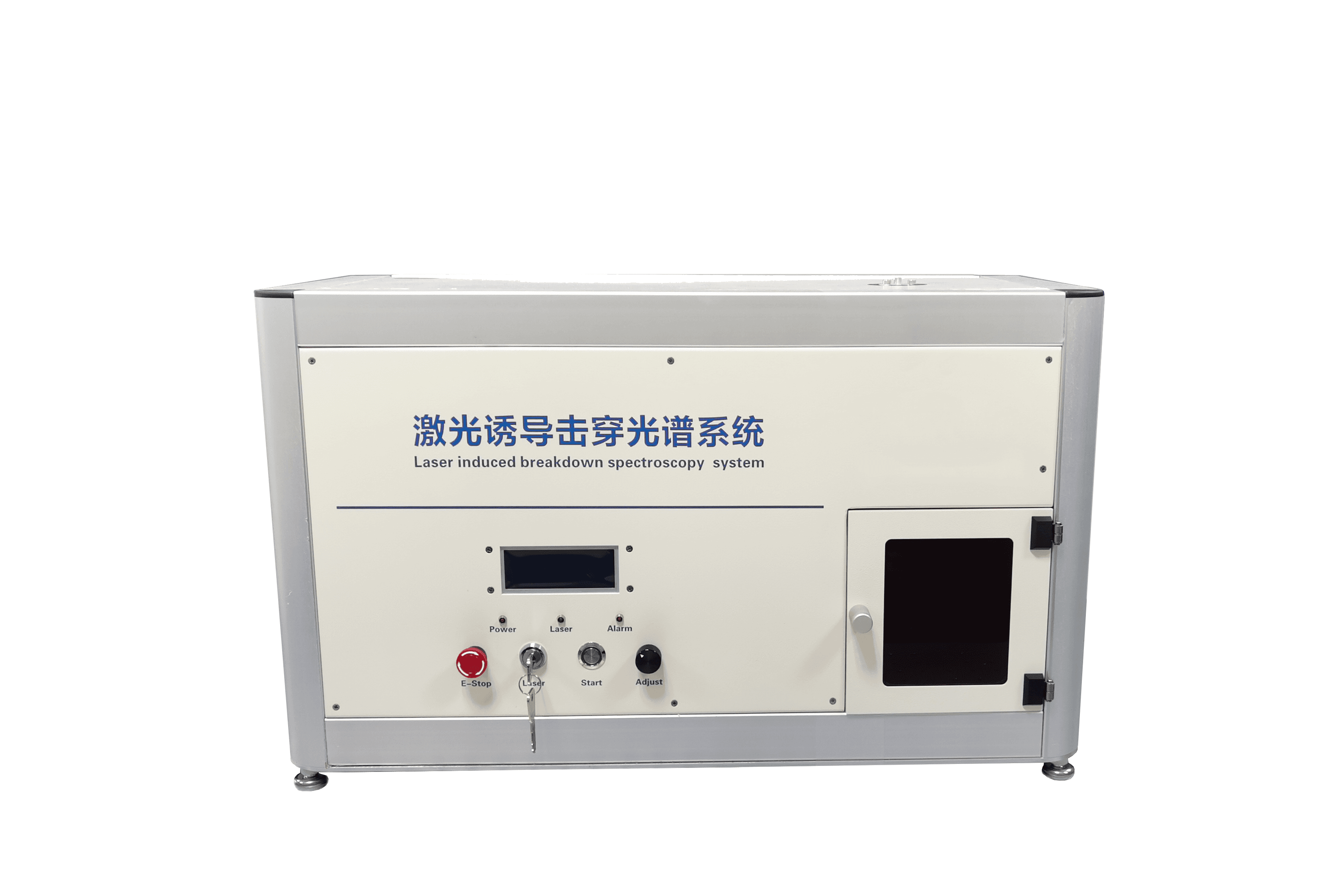

Laser Induced Breakdown Spectroscopy System
With the features of rapid and simple detection process, it is widely used in alloy, coal, waste water, waste gas and various fields which is relevant with elements detection.
Product Specifications
Laser Induced Breakdown Spectroscopy System
8 specification rows
Specifications
| Field 1 | Field 2 | Field 3 | Field 4 |
|---|---|---|---|
| Solid Substance LIBS Detection | Metal sample (e.g., metal, alloy, steel, mineral, etc.) | High energy pulse laser E: 100μJ~10mJ | The sample has good thermal conductivity, and the laser energy is high enough. |
| Solid Substance LIBS Detection | Non metallic multi component sample (e.g., heavy metals in soils, NPK fertilizer detection, coal quality analysis etc.) | Low frequency high energy pulse laser E: 10mJ~100mJ | The thermal conductivity of the sample is not good, the high temperature will lead to chemical reaction or burning. |
| Liquid Substance LIBS Detection | Liquid sample (e.g., sea water, industrial waste water detection, etc.) | High energy pulse laser E: 100mJ~500mJ | Due to the plasma shock wave action, the liquid level fluctuation will affect the detection stability. |
| Gaseous Substance LIBS Detection | Gases and aerosols (e.g., air, air pollutants, automobile exhaust, industrial waste gas, etc.) | Low frequency high energy pulse laser E: 500mJ~1000mJ | Gas breakdown threshold is high, need high energy laser as the excitation light source. |
| Data Sheet | - | - | - |
Specifications
| Field 1 | Field 2 | Field 3 |
|---|---|---|
| Copper-aluminum alloy LIBS spectrum | Cr: YAG LIBS spectrum | Granite LIBS spectrum |
| Plant leaves LIBS spectrum | Air LIBS spctrum | Soil LIBS spectrum |
Product variants
| Value |
|---|
| Coaxial design of excitation optical path and acquisition optical path Internal control / external control dual mode Output Q signal synchronously Two-dimensional precision adjustment platform is installed in the sample room The height of the lifting platform can be adjusted to realize the detection of samples of different sizes Integrated system design and simple operation |
Need this configured?
Share wavelength range, measurement target, detector needs, sample geometry, software and interface requirements, and we will qualify the matching configuration.
