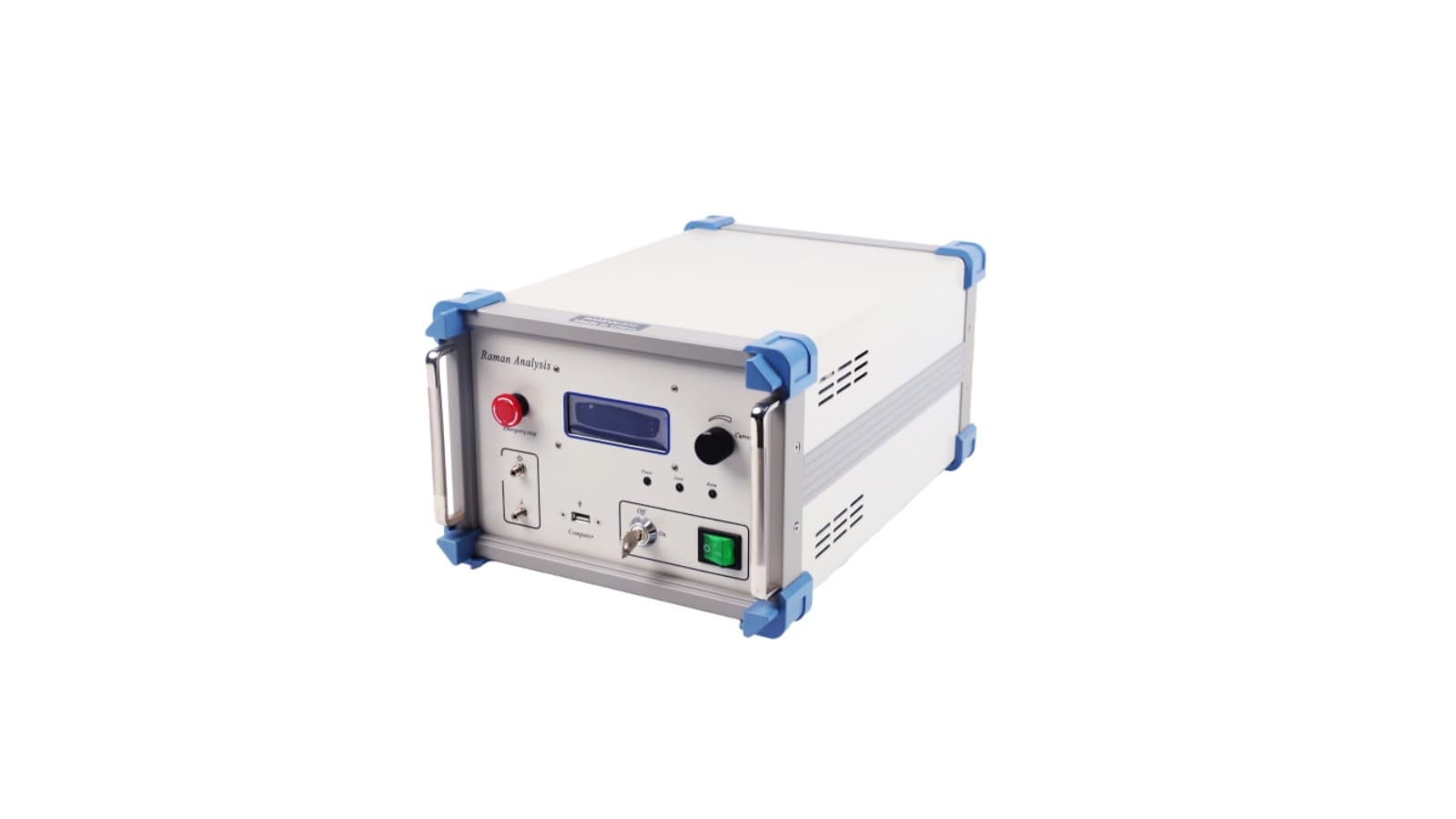

Desktop Raman Spectrum System
Built-in narrow line width laser - power adjustable, high sensitivity spectrometer - used for weak signal detection.
Product Specifications
Desktop Raman Spectrum System
33 specification rows
Specifications
| Field 1 | Field 2 | Field 3 | Field 4 |
|---|---|---|---|
| RPB-405 Raman probe | RPB-532 Raman probe | RPB-785 Raman probe | RPB-830 Raman probe |
| 405nm fiber coupled laser | 532nm fiber coupled laser | 785nm fiber coupled laser | 830 nm fiber coupled laser |
| Fiber spectrometer: Raman Standard: Sunshine TG-Raman | - | - | - |
| PC data processing unit | - | - | - |
| Man-machine interface | - | - | - |
Specifications
| Field 1 | Field 2 | Field 3 | Field 4 | Field 5 |
|---|---|---|---|---|
| Wavelength (nm) | 405 ±0.5 | 532±0.5 | 785±0.3 | 830 ±5 |
| Mode | Single | Single | Single | Multi |
| Spectral line width (cm-1) | 1.8 | 3.5 / 0.1 | <3.2 | <28 |
| Output power (mW) | 1-500 | 1-1000 | 1-500 | 1-900 |
| Power stability (pk-pk, 4 hours) | <1%, <3%, <5% | <1%, <3%, <5% | <1%, <3%, <5% | <1%, <3%, <5% |
| Parameter of fiber | 100um@0.22NA | 100um@0.22NA | 100um@0.22NA | 100um@0.22NA |
| Noise of amplitude(rms) | - | <0.5% | <0.5%, <1% | <1% |
| Operating mode | CW | CW | CW | CW |
| Warm-up time (minutes) | <5 | <10 | <5 | <5 |
| Operating temperature (℃) | 10-35 | 15-35 | 10-40 | 10-35 |
| Expected lifetime (hours) | 10000 | 10000 | 10000 | 10000 |
| Warranty | 1 year | 1 year | 1 year | 1 year |
Specifications
| Field 1 | Field 2 | Field 3 | Field 4 | Field 5 |
|---|---|---|---|---|
| Wavelength range | 405-500nm (405nm excitation) | 532-700nm (532nm excitation) | 785-1100nm (785nm excitation) | 830- 1000nm (785nm excitation) |
| Optical resolution | 8-12cm -1 (405nm excitation) | 8-12cm -1 (532nm excitation) | 5-8cm -1 (785nm excitation) | 5-7cm -1 (830nm excitation) |
| Pixels | 2048 pixels | - | - | - |
| Pixels size | 14um*14um | - | - | - |
| Dimensions (mm) | 149*109*50 | - | - | - |
| Weight (g) | 1000 | - | - | - |
| Signal-to-noise ratio | 1000: 1 | - | - | - |
| Integration time | 17ms-10s | - | - | - |
| Power consumption | 450mA@5VDC | - | - | - |
| Data transfer speed | Full scans into memory every 4 milliseconds with USB 2.0 Full scans into memory every 18 milliseconds with USB 1.1 | - | - | - |
| Inputs / outputs | 5 inputs and 5 outputs ports | - | - | - |
| Analog channels | One 12 analog input one 12 analog output | - | - | - |
| Connector | 30pin connector | - | - | - |
Specifications
| Parameter | Value |
|---|---|
| Optical spectrum analysis | Spectral Analysis / Raman Analysis 2.0 |
| Operating system | Windows XP / Win7 (32bits or 64 bits) |
Product variants
| Field 2 | Field 3 |
|---|---|
| Features: Spectrometer resolution T-RamanSys-405 ：＜ 12 cm -1 T-RamanSys-532: ＜12cm -1 T-RamanSys-785: ＜5cm -1 T-RamanSys-830: ＜7cm -1 Broad spectral range, Raman drift range T-RamanSys-405 ： 30 0-4700cm -1 T-RamanSys-532: 200-4500cm -1 T-RamanSys-785: 175-4000cm -1 T-RamanSys-830: 300-2048cm -1 Customized wavelength range and resolution Fit various applications Compatible with software Raman Analysis 2.0 | Applications: Raman spectral analysis Chemical or biological research Environmental sciences Diamond identification Food safety testing Judicial identification Pharmaceutical and medical diagnosis Geological exploration Hazard detection |
Need this configured?
Share wavelength range, measurement target, detector needs, sample geometry, software and interface requirements, and we will qualify the matching configuration.
