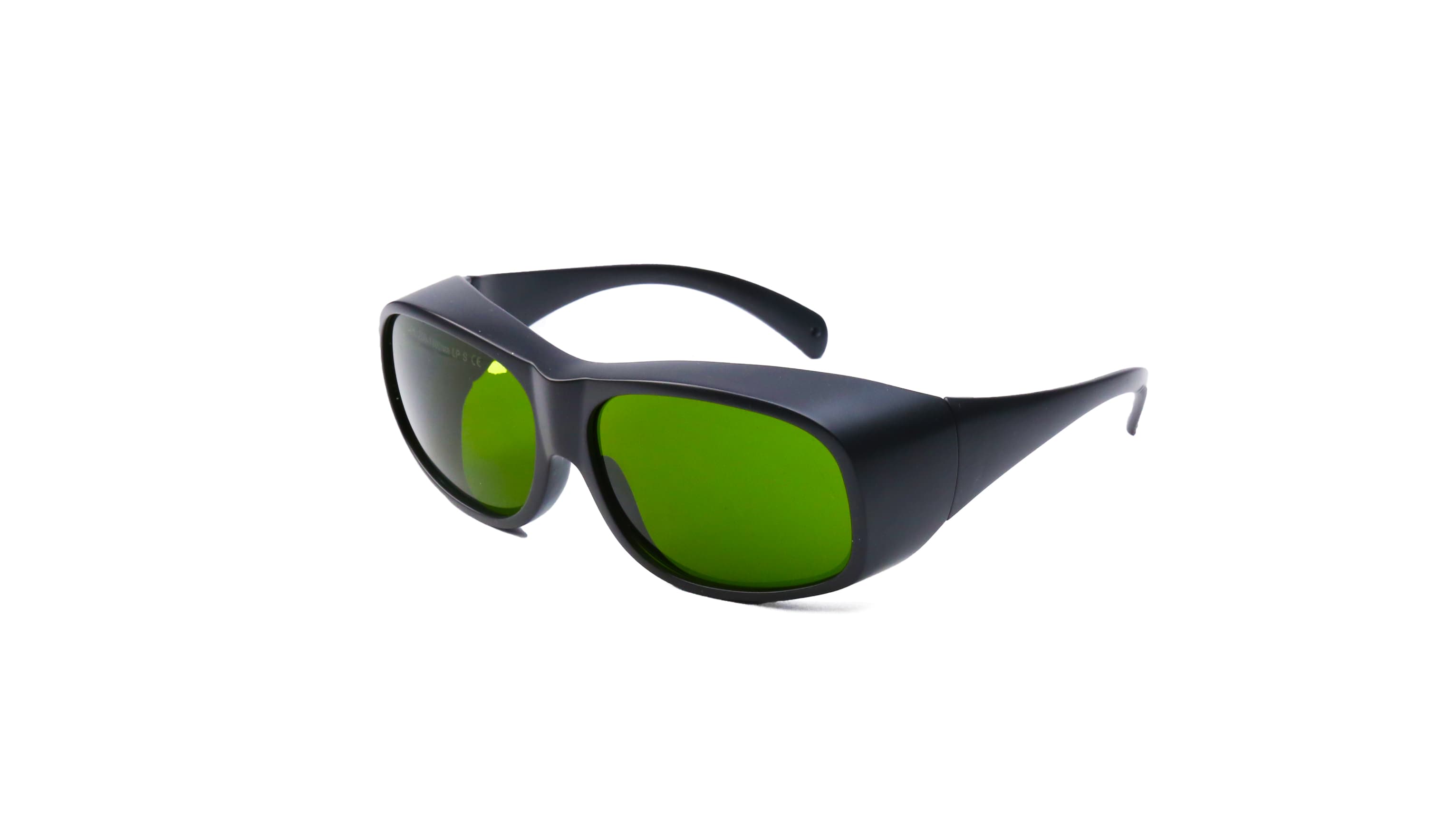

Laser Goggles
Laser goggles with beautiful shape, comfortable fit, high definition, extrusion deformation prevention material, are able to protect human eyes from the laser radiation damage from 200-1100nm.
Product Specifications
Laser Goggles
37 specification rows
Specifications
| Parameter | Value |
|---|---|
| 1. Protect wavelength: 180-540nm; Typical wavelength: 266nm, 355nm, 405nm, 450nm, 532nm, etc. Application: excimer, ultraviolet, green laser protection. | - |
| LS-G: VLT=40%, OD5+ for 180-540nm, LB-Rating (EN 207): DIRM LB5 for 315-540nm | LS-G-2: VLT=25%, OD7+ for 180-534nm (High protection), LB-Rating (EN 207): DIRM LB6 for 315-534nm |
| LS-G-3: T<1%, OD4+ Economical! | - |
| 2. Protect wavelength: 200-460nm; Typical wavelength: 450nm, etc. Application: UV, violet, blue laser protection. | - |
| LS-V: VLT=79%, OD5+ for 200-460nm, LB-Rating (EN 207): DIR LB5 for 315-460nm | - |
| 3. Protect wavelength: 180-534nm & 740-1100nm; Typical wavelength: 532 & 808 & 1064nm, etc. Application: ND: YAG and frequency doubling ND: YAG laser protection. | - |
| LS-GI: VLT=22%, OD5+ for 180-532nm, OD5+ for 900-1080nm. LB-Rating (EN 207): DIR LB5 + M LB5 for 316-532nm, DIR LB5 for 900-1080nm. | LS-GI-2: VLT=20%, OD6+ for 180-534nm, OD5+ for 800-1100nm, OD6+ for 900-1095nm. LB-Rating (EN 207): DIRM LB6 for 315-534nm, DIR LB5 for 800-1100nm, DIRM LB6 for 900-1095nm, |
| LS-GI-3: VLT=13%, OD7+ for 180-534nm, OD5+ for 740-1100nm, OD7+ for 900-1095nm. LB-Rating (EN 207): DIRM LB6 for 315-534nm, DIRM LB5 for 740-1100nm, D LB6 + IRM LB7 for 900-1095nm, | - |
| 4. Protect wavelength: 620-700nm; Typical wavelength: 635nm, 650nm, 694nm, etc. Application: ruby, red laser protection. | - |
| LS-R: VLT=50%, OD4+ for 620-700nm. LB-Rating (EN 207): DIR LB4 for 620-700nm | LS-R-2: VLT=25%, OD6+ for 620-700nm. (High protection) LB-Rating (EN 207): DIR LB5 for 620-700nm |
| 5. Protect wavelength: 560-600nm; Typical wavelength: 561nm, 577nm, 585nm, 595nm, etc. Application: Pulsed-dye laser, yellow laser protection. | - |
| LS-DH: VLT=18%, OD4+ for 585-595nm, LB-Rating (EN 207): DIR LB4 for 585-595nm, | LS-DH-2: VLT=7%, OD6+ for 560-600nm, LB-Rating (EN 207): DIR LB5 for 560-600nm, |
| 6. Protect wavelength: 200-450nm & 630-660nm & 800-1100nm; Typical wavelength: 635nm, 808nm, 980nm, etc. Application: red laser, 808 & 980 nm diode laser protection. | - |
| LS-RI: VLT=30%, OD3+ for 630-660nm, OD5+ for 800-830nm. LB-Rating (EN 207): DIR LB3 for 630-660nm, DIR LB5 for 800-830nm. | LS-RI-2: VLT=35%, OD2+ for 630-660nm, OD5+ for 800-1100nm. LB-Rating (EN 207): DIR LB2 for 630-660nm, DIR LB5 for 800-1100nm. |
| LS-RI-3: VLT=25%, OD3+ for 630-660nm, OD3+ for 800-830nm, OD5+ for 900-1100nm. LB-Rating (EN 207): DIR LB3 for 630-660nm, DIR LB3 for 800-830nm, DIR LB5 for 900-1100nm. | LS-RI-4: VLT=18%, OD4+ for 200-450nm, OD4+ for 630-660nm, OD6+ for 800-1100nm. LB-Rating (EN 207): D LB5 + IR LB6 for 316-440nm, DIR LB4 for 440-450nm, DIR LB4 for 630-660nm, DIR LB6 for 800-1080nm, |
| 7. Protect wavelength: 740-850nm; Typical wavelength: 755nm, 808nm, etc. Application: alexandrite, 808 nm diode lasers protection. | - |
| LS-AT: VLT=35%, OD5+ for 740-850nm, OD6+ for 780-830nm. LB-Rating (EN 207): DIR LB5 for 740-850nm, DIR LB6 for 780-830nm. | - |
| 8. Protect wavelength: 720-1100nm; Typical wavelength: 755nm, 808nm, 1064nm, etc. Application: alexandrite, 808 & 980 nm diode lasers, ND: YAG laser protection. | - |
| LS-AD: VLT=33%, OD5+ for 740-780nm, OD6+ for 780-820nm. OD7+ for 820-1100nm. LB-Rating (EN 207): DIR LB5 for 740-780nm, D LB5+ IR LB6 for 780-820nm, D LB5+ IR LB7 for 820-1080nm. | LS-AD-2: VLT=25%, OD5+ for 720-1100nm, (High protection) OD7+ for 750-1100nm. LB-Rating (EN 207): DIRM LB5 for 720-1100nm, D LB6+ IRM LB7 for750-1100nm. |
| LS-AD-3: VLT=31%, OD8+ for 900-1100nm, (High protection) LB-Rating (EN 207): D LB6+ IR LB8 for 900-1100nm. | LS-AD-3 DIN4: VLT=6%, OD8+ DIN4 for 900-1100nm, (High protection) LB-Rating (EN 207): D LB6+ IR LB8 for 900-1100nm. |
| 9. Protect wavelength: 800-1700nm; Typical wavelength: 755nm, 808nm, 980nm, 1064nm, 1470nm, etc. Application: alexandrite, 808 & 980 nm diode lasers, ND: YAG laser protection. | - |
| LS-DT: VLT=18%, OD4+ for 800-1700nm OD6+ for 900-1550nm LB-Rating (EN 207): DIRM LB4 for 800-1400nm, DIRM LB6 for 900-1400nm, DI LB3 for 1400-1700nm. | - |
| 10. Protect wavelength: 660nm & 800-1100nm; Typical wavelength: 808nm, 980nm, 1064nm, etc. Application: diode lasers, dental lasers, ND: YAG laser protection. | - |
| LS-IR-HP: VLT=43%, OD1+ for 660nm, OD5+ for 800-1095nm. LB-Rating (EN 207): DIR LB1 for 660nm, DI LB5+ R LB5 for 800-1095nm. | LS-IR-HP-2: VLT=41%, OD6+ for 800-900nm, OD7+ for 900-1100nm. LB-Rating (EN 207): D LB5+ IR LB6 for 800-900nm, D LB5+ IR LB7 for 900-1080nm. |
| LS-IR-HP-3: VLT=65%, OD4+ for 800-1100nm, OD5+ for 830-980nm, OD7+ for 1000-1095nm. LB-Rating (EN 207): DIR LB4 for 800-1100nm, DIR LB5 for 830-980nm, D LB5+ IR LB7 for 1000-1095nm. | LS-IR-HP-2 DIN4: VLT=8%, OD6+ for 800-900nm, OD7+ DIN4 for 900-1100nm. LB-Rating (EN 207): D LB5+ IR LB6 for 800-900nm, D LB5+ IR LB7 for 900-1080nm |
| 11. Protect wavelength: 1900-3000nm; Typical wavelength: 2100nm, etc. Application: Holmium laser, thulium laser protection. | - |
| LS-HO: VLT=55%, OD4+ for 1900-3000nm, OD5+ for 2000-2300nm. LB-Rating (EN 207): DI LB3 for 1900-3000nm. | - |
| 12. Protect wavelength: 2700-3000nm; Typical wavelength: 2940nm, etc. Application: Er laser protection. | - |
| LS-ER: VLT=87%, OD6+ for 2700-3000nm. LB-Rating (EN 207): DI LB3 for 2940nm. | - |
| 13. Protect wavelength: 9000-11000nm; Typical wavelength: 10600nm (10.6um), etc. Application: CO ₂ laser protection. | - |
| LS-C: VLT=83%, OD6+ for 9000-11000nm. LB-Rating (EN 207): DI LB3 for 10600nm. | - |
| 14. Protect wavelength: 200-1800nm; Specially designed for IPL machine. | - |
| LS-UI: VLT=~10% Executive standard: CE EN169 | LS-UI-2: VLT=~2% Executive standard: CE EN169 |
| 15. Protect wavelength: 740-1150nm & 1010-1550nm & 1550-2300nm & 2850-11000nm; Specially designed for absorbent glass sheet. | - |
| LS-GIR: VLT=50%, OD7+ for 740-900nm, OD8+ for 900-1150nm. LB-Rating (EN 207): D LB6+ IR LB7 for 740-900nm, D LB6+ IR LB8 for 900-1150nm. | LS-GIR-2: VLT=75%, OD4+ for 870-950nm, OD5+ for 950-1000nm, OD7+ for 1010-1550nm, OD5+ for 1550-2300nm, OD4+ for 2850-11000nm. LB-Rating (EN 207): DIR LB4 for 870-950nm, DIR LB5 for 950-1000nm, D LB6+ IR LB7 for 1010-1400nm, DI LB4 for 1400-2300nm& 2850-11000nm. |
| Note: VLT: Visible light transmittance (Ambient light), OD: Optical density (Protection value of lase r), T: Transmittance in the protective | - |
| wavelength range. Executive standard: CE EN207 | - |
