Color · XCAMLITE4K_MINI Series

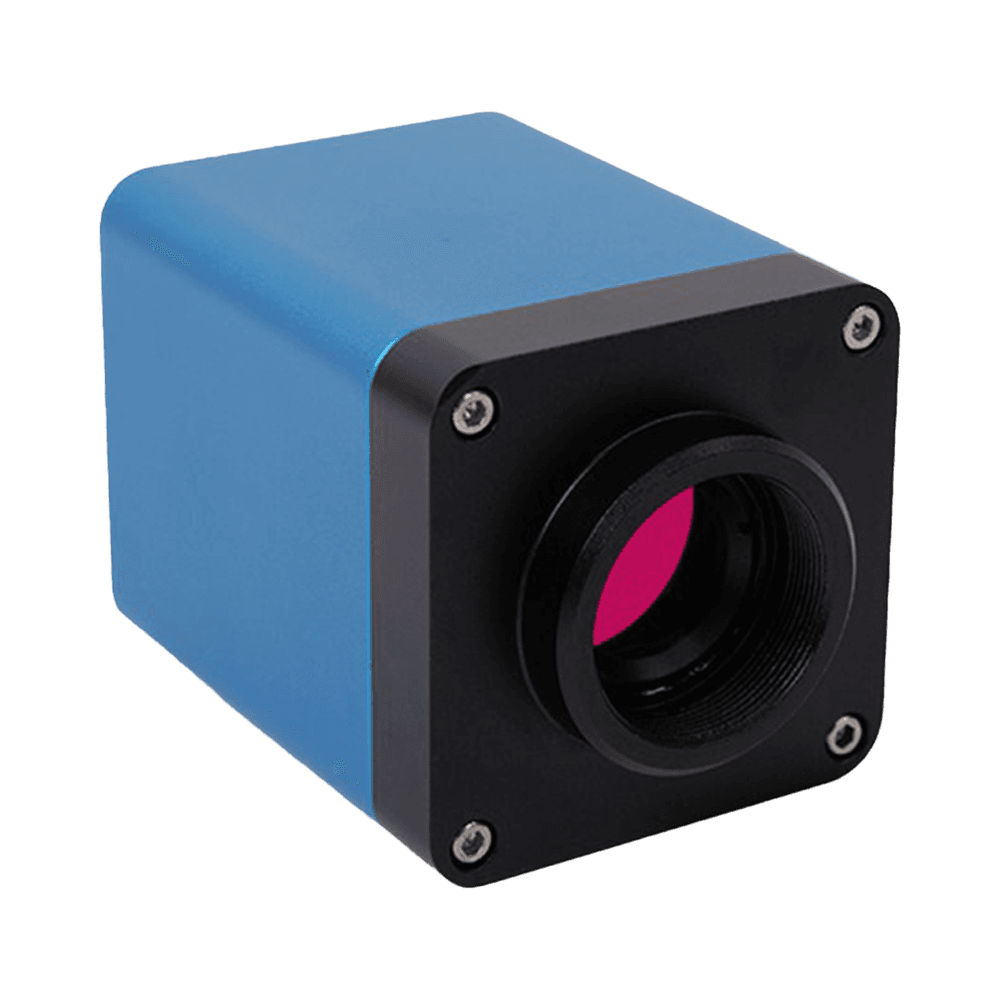

XCAMLITE4K8MPA-MINI
- Sensor
- Sony IMX334(C)
- Resolution
- 8MP (3840×2160)
- Pixel Size
- 2.0 μm × 2.0 μm
- Frame Rate
- HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160
- Interface
- HDMI1.4, USB2.0
Complete Specifications
Sensor & Imaging
| Sensor Model | Sony IMX334(C) |
|---|---|
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Diagonal | 8.8 mm |
| Pixel Size | 2.0 μm × 2.0 μm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Sensor | Sony IMX334(C) |
Performance
| Frame Rate | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 |
|---|
Interface & Connectivity
| Output Interfaces | HDMI1.4, USB2.0 |
|---|---|
| Storage Support | USB drive |
| Software Support | XCamView, ToupView, ToupLite |
| OS Support | Windows, Linux, macOS |
| Interface | HDMI1.4, USB2.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | DC 12 V/1A |
| Dimensions | Compact design |
| Weight | Lightweight design |
| Operating Temperature | 10 °C ~ +50 °C |
Other Published Specifications
| Product Model | XCAMLITE4K8MPA-MINI |
|---|---|
| Product Series | 4K/HDMI/USB multi-output C-mount CMOS camera |
| Certification | CE, FCC, RoHS |
