XCAM1080PHX Series

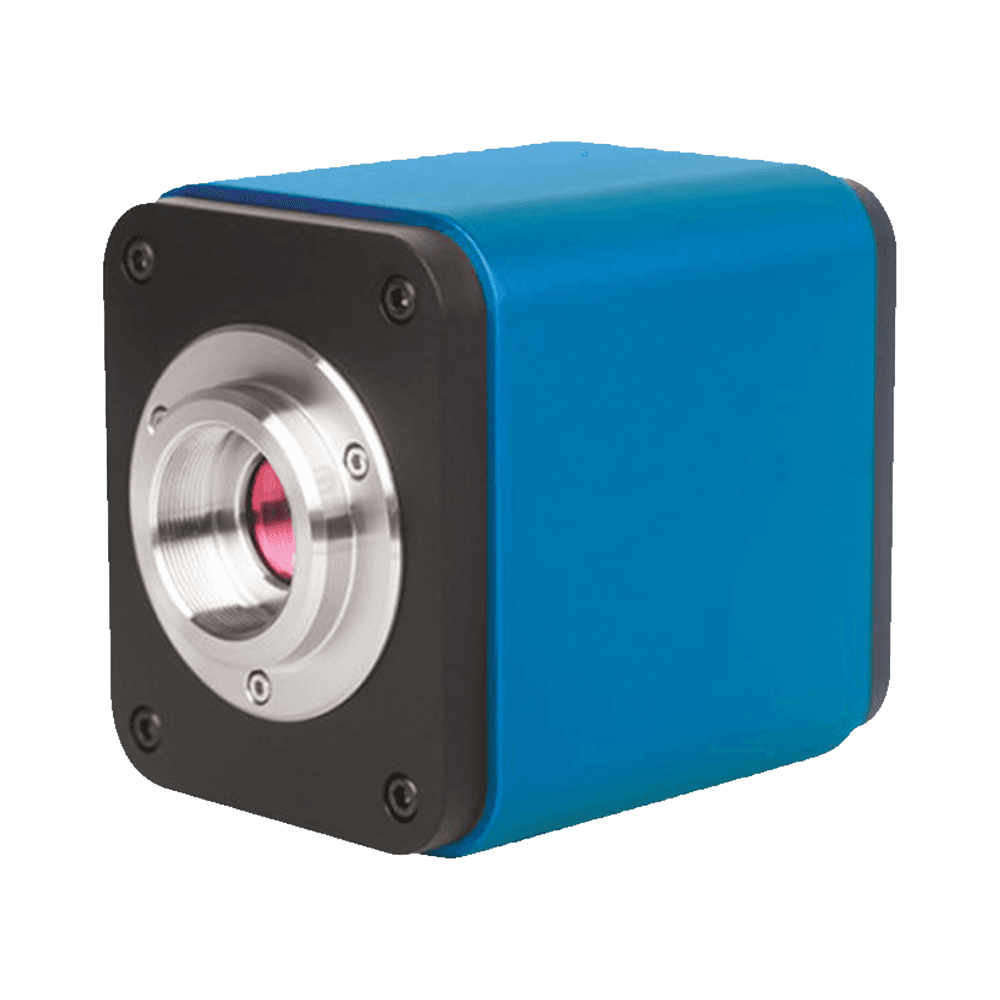

XCAM1080PHB Multi-Interface Output Camera with Sony IMX178(C) sensor, 5MP (2592×1944) for autofocus imaging.
Application context
XCAM1080PHB: The Sony IMX178(C) sensor, 5MP (2592×1944) resolution, and 2.4 μm × 2.4 μm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
XCAM1080PHB: The Sony IMX178(C) sensor, 5MP (2592×1944) resolution, and 2.4 μm × 2.4 μm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
20 specification rows
The XCAM1080PHB is an intelligent imaging camera in the XCAM1080PHX series, built around a Sony IMX178(C) sensor, 5MP (2592×1944) resolution, 2.4 μm × 2.4 μm pixels, frame rates up to HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080, a HDMI, Wi-Fi interface. It suits xcam1080phx series where reliable imaging performance and interface compatibility matter.
| Product Model | XCAM1080PHB |
|---|---|
| Product Series | C-mount HDMI+Wi-Fi CMOS camera |
| Sensor Model | Sony IMX178(C) |
|---|---|
| Sensor Size | 1/1.8" (6.22×4.67 mm) |
| Diagonal | 7.8 mm |
| Pixel Size | 2.4 μm × 2.4 μm |
| Resolution | 5MP (2592×1944) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080 |
|---|---|
| Output Interfaces | HDMI, Wi-Fi |
| Lens Mount | C-mount |
| Storage Support | SD card |
| Software Support | XCamView, ToupView, ToupLite |
| Power Supply | DC 12 V/1A |
|---|---|
| Dimensions | 78 × 70 × 92 mm |
| Weight | 0.47 kg |
| Operating Temperature | 10 °C ~ +50 °C |
|---|
| OS Support | Windows, Linux, macOS, Android, iOS |
|---|---|
| Certification | CE, FCC, RoHS |
System integration
Use these checks to connect XCAM1080PHB to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX178(C) · Resolution: 5MP (2592×1944). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080 · Interface: HDMI, Wi-Fi. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare XCAM1080PHB with the closest available models in the XCAM1080PHX family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | XCAM1080PHB (current) | XCAM1080PHD | XCAM1080PHE |
|---|---|---|---|
| Sensor | Sony IMX178(C) | Sony IMX185(C) | Sony IMX249(C,GS) |
| Resolution | 5MP (2592×1944) | 2MP (1920×1080) | 2MP (1920×1080) |
| Sensor size | 1/1.8" (6.22×4.67 mm) | 1/1.9" (7.20×4.05 mm) | 1/1.2" (11.25×6.33 mm) |
| Pixel size / frame rate | 2.4 μm × 2.4 μm | 3.75 μm × 3.75 μm | 5.86 μm × 5.86 μm |
The IMX178 appears in 14 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the XCAM1080PHB with other XCAM1080PHX models and intelligent imaging cameras in the range.
