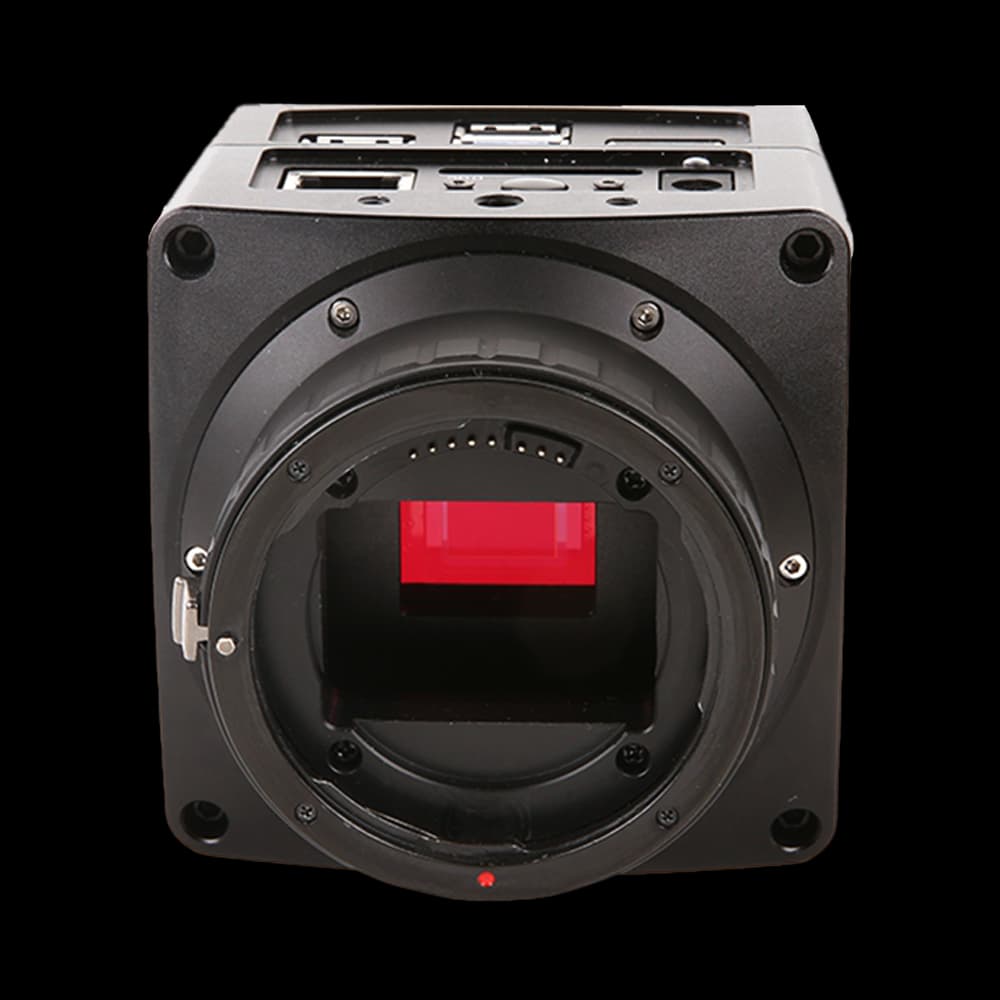

X7FCAM4K EF-Mount Autofocus Camera Series
X7FCAM4K16MPA_EFL combines a 16 MP Sony sensor, EF lens control, 4K output, HDMI, USB3.0 and Ethernet for high-resolution imaging.
Application context
X7FCAM4K16MPA_EFL: The Sony IMX283(C) sensor, 16MP (5440×3060) resolution, and 2.4 µm × 2.4 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 30 fps @ 5440×3060 frame-rate listing also sets the fastest full-frame acquisition regime.
X7FCAM4K16MPA_EFL: The Sony IMX283(C) sensor, 16MP (5440×3060) resolution, and 2.4 µm × 2.4 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 30 fps @ 5440×3060 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
17 specification rows
The X7FCAM4K16MPA_EFL is an intelligent imaging camera in the X7FCAM4K series, built around a Sony IMX283(C) sensor, 16MP (5440×3060) resolution, 2.4 µm × 2.4 µm pixels, frame rates up to 30 fps @ 5440×3060, a HDMI / USB3.0 / Ethernet interface. It suits x7fcam4k ef-mount autofocus camera series where reliable imaging performance and interface compatibility matter.
| Product Model | X7FCAM4K16MPA_EFL |
|---|---|
| Product Series | X7FCAM4K EF-Mount Autofocus Camera Series |
| Autofocus | Supported |
| Sensor Model | Sony IMX283(C) |
|---|---|
| Sensor Size | 1/1.1" (13.06×7.3 mm) |
| Pixel Size | 2.4 µm × 2.4 µm |
| Maximum Resolution | 16MP (5440×3060) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Output Interfaces | HDMI / USB3.0 / Ethernet |
|---|---|
| Frame Rate | 30 fps @ 5440×3060 |
| Storage Support | SD Card / USB Flash Drive |
| Software Support | XCamView / ToupView / ToupLite |
| Power Supply | DC 12 V / 2 A |
| Operating Temperature | 10 °C ~ +50 °C |
|---|
| Operating System | Windows / Linux / macOS / Android / iOS |
|---|---|
| Certification | CE / FCC / RoHS |
System integration
Use these checks to connect X7FCAM4K16MPA_EFL to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Sensor: Sony IMX283(C) · Resolution: 16MP (5440×3060). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 30 fps @ 5440×3060 · Interface: HDMI / USB3.0 / Ethernet. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
The IMX283 appears in 4 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the X7FCAM4K16MPA_EFL with other X7FCAM4K models and intelligent imaging cameras in the range.
