HDMI Multi-Interface CMOS Camera

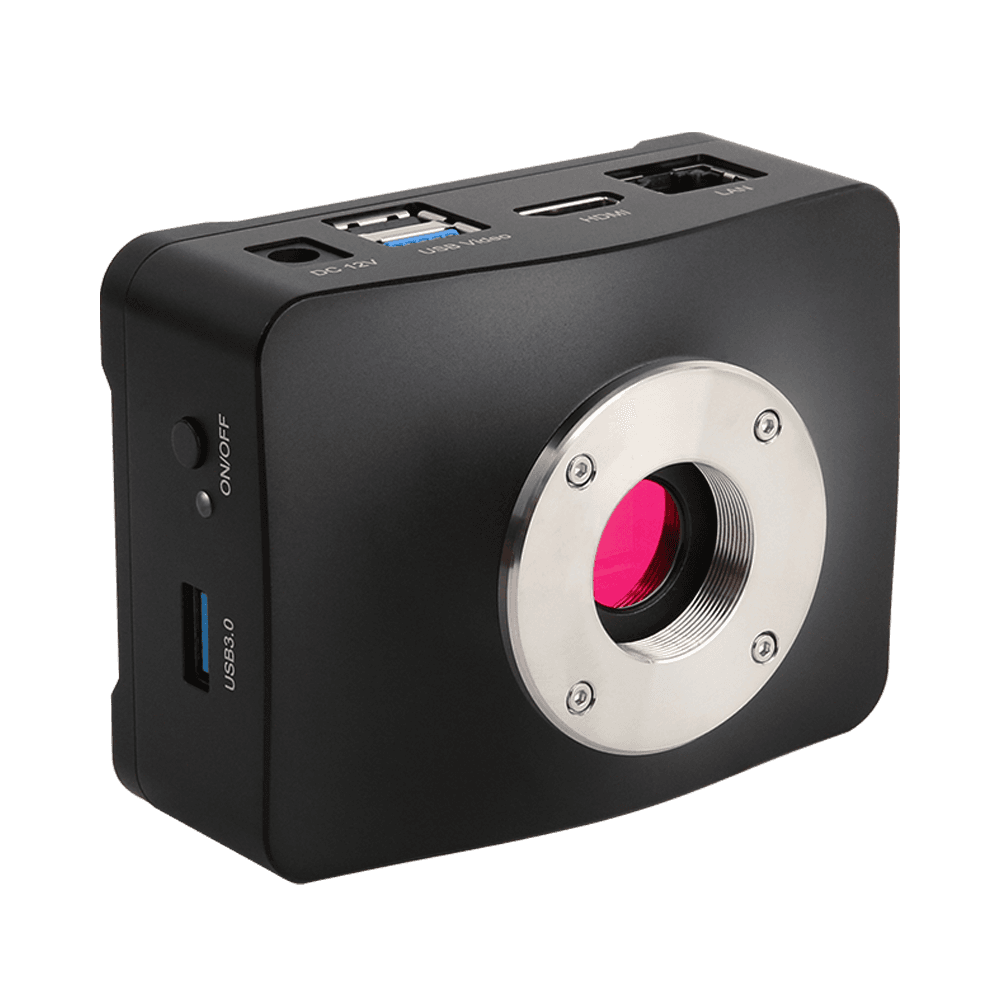

X7CAM4K16MPA Multi-Interface Output Camera with Sony IMX283(C) sensor, 16MP for autofocus imaging.
Application context
X7CAM4K16MPA: The Sony IMX283(C) sensor, 16MP resolution, and 2.4 µm × 2.4 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 30 fps @ 5440×3060 frame-rate listing also sets the fastest full-frame acquisition regime.
X7CAM4K16MPA: The Sony IMX283(C) sensor, 16MP resolution, and 2.4 µm × 2.4 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 30 fps @ 5440×3060 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
18 specification rows
The X7CAM4K16MPA is an intelligent imaging camera in the X7CAM4K series, built around a Sony IMX283(C) sensor, 16MP resolution, 2.4 µm × 2.4 µm pixels, frame rates up to 30 fps @ 5440×3060, a HDMI, USB3, WiFi, LAN interface. It suits hdmi multi-interface cmos camera where reliable imaging performance and interface compatibility matter.
| Product Model | X7CAM4K16MPA |
|---|---|
| Product Series | HDMI Multi-Interface CMOS Camera |
| Sensor Model | Sony IMX283(C) |
|---|---|
| Sensor Size | 1/1.1" (13.06×7.34 mm) |
| Diagonal | 1/1.1" |
| Pixel Size | 2.4 µm × 2.4 µm |
| Resolution | 16MP |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | 30 fps @ 5440×3060 |
|---|---|
| Output Interfaces | HDMI, USB3, WiFi, LAN |
| Lens Mount | C mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView |
| Power Supply | DC 12 V/1A |
|---|
| Operating Temperature | 10 °C ~ 50 °C |
|---|
| OS Support | Windows, Linux, macOS |
|---|---|
| Certification | CE, FCC |
System integration
Use these checks to connect X7CAM4K16MPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX283(C) · Resolution: 16MP. Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 30 fps @ 5440×3060 · Interface: HDMI, USB3, WiFi, LAN. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare X7CAM4K16MPA with the closest available models in the X7CAM4K family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | X7CAM4K16MPA (current) | X7CAM4K8MPA | X7CAM4K8MPB |
|---|---|---|---|
| Sensor | Sony IMX283(C) | Sony IMX678(C) | Sony IMX585(C) |
| Resolution | 16MP | 8MP | 8MP |
| Sensor size | 1/1.1" (13.06×7.34 mm) | 1/1.8" (7.68×4.32 mm) | 1/1.2" (11.14×6.26 mm) |
| Pixel size / frame rate | 2.4 µm × 2.4 µm | 2.0 µm × 2.0 µm | 2.9 µm × 2.9 µm |
The IMX283 appears in 4 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
