PMS-LTD-265LR/G/B/W
PMS-LTD-265LR/G/B/W compact parallel illumination. Beam diameter: 265mm. Folded parallel backlights for telecentric inspection where installation space is limited.
Compact Parallel Illumination
Folded parallel backlights for telecentric inspection where installation space is limited.
Complete specifications
| Beam diameter | 265mm |
|---|---|
| Working distance | 150-500mm |
| Length | 438.26mm |
| Width | 609mm |
| Thickness | 337.5mm |
| Forward voltage | 3.5V |
| Forward current | 350mA |
| Available colors | Red / Green / Blue / White |

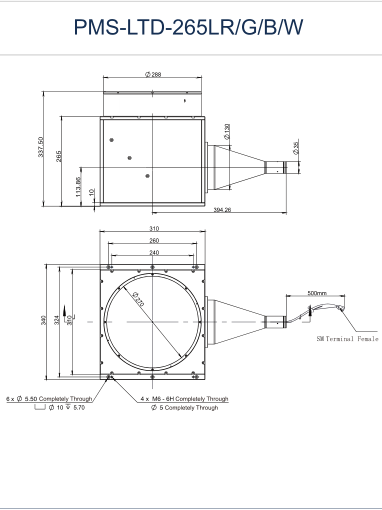

Technical drawings
