PMS-LTD-189LR/G/B/W
PMS-LTD-189LR/G/B/W compact parallel illumination. Beam diameter: 189mm. Folded parallel backlights for telecentric inspection where installation space is limited.
Compact Parallel Illumination
Folded parallel backlights for telecentric inspection where installation space is limited.
Complete specifications
| Beam diameter | 189mm |
|---|---|
| Working distance | 250-500mm |
| Length | 356mm |
| Width | 472.6mm |
| Thickness | 252mm |
| Forward voltage | 3.5V |
| Forward current | 350mA |
| Available colors | Red / Green / Blue / White |

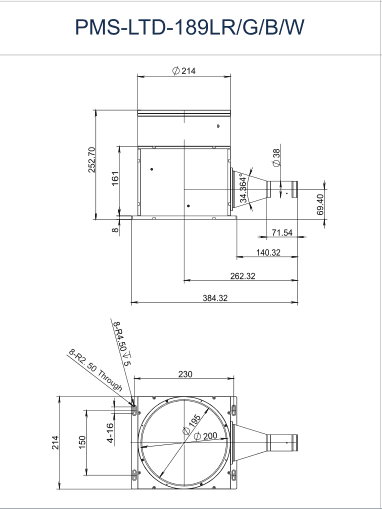

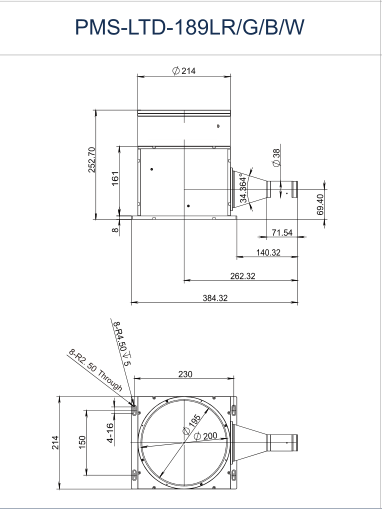

Technical drawings
