PMS-LTD-100LR/G/B/W
PMS-LTD-100LR/G/B/W compact parallel illumination. Beam diameter: 100mm. Folded parallel backlights for telecentric inspection where installation space is limited.
Compact Parallel Illumination
Folded parallel backlights for telecentric inspection where installation space is limited.
Complete specifications
| Beam diameter | 100mm |
|---|---|
| Working distance | 150-300mm |
| Length | 235.5mm |
| Width | 276mm |
| Thickness | 147.5mm |
| Forward voltage | 3.5V |
| Forward current | 350mA |
| Available colors | Red / Green / Blue / White |

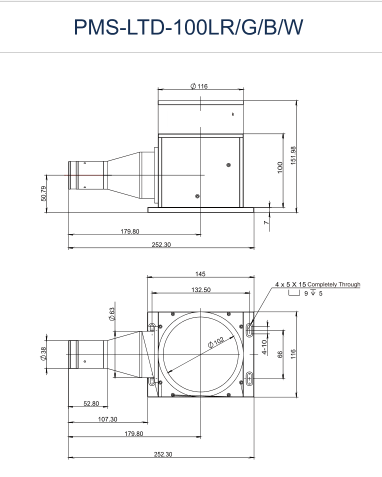

Technical drawings
