PMS-BKL-320X240R/W/B
PMS-BKL-320X240R/W/B flat illumination. Luminous area: 320mm×240mm. Uniform flat backlights for profile measurement and inspection of transparent objects.
Flat Illumination
Uniform flat backlights for profile measurement and inspection of transparent objects.
Complete specifications
| Luminous area | 320mm×240mm |
|---|---|
| Available colors | Red / White / Blue |
| Color | Voltage | Power | Wavelength / color temperature |
|---|---|---|---|
| Red | 24V | 37W | 625nm |
| White | 24V | 56W | 6500K |
| Blue | 24V | 56W | 470nm |
Series parameters
| Series spectral options | Red: 620–630 nm or 645–660 nm; green: 525 nm; blue: 470 nm; white: 6500 K; infrared: 850–950 nm; ultraviolet: 365–395 nm |
|---|---|
| Matching controller | PMS-DPI2404-4-RS232T |
| Operating temperature | 0–40 °C |
| Operating humidity | 20–85% RH, non-condensing |
| Accessories | Diffusion plate (standard on some models); extension cable: 1, 3 or 5 m; standard cable length: 0.5 m |
| Expected service life | White light: more than 30,000 h at 25 °C and 50% brightness, to 50% attenuation |
| Customization | Object characteristics, working distance, irradiation angle, color and field of view can be specified on request |

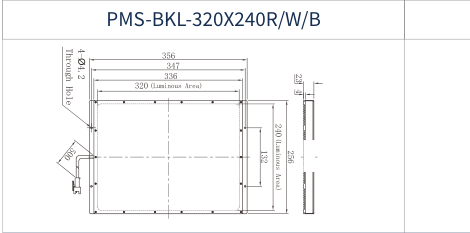

Technical drawings
