Bar Illumination
Modular strip lighting with adjustable irradiation angles for larger inspection areas.
Complete illumination catalog (PDF)

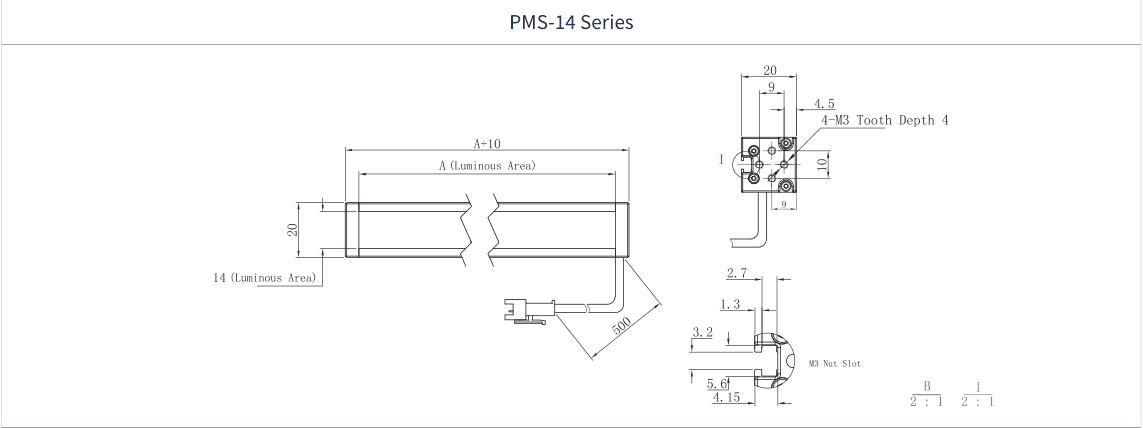

14 mm luminous-width bar series dimension drawing (mm); A is the model luminous length

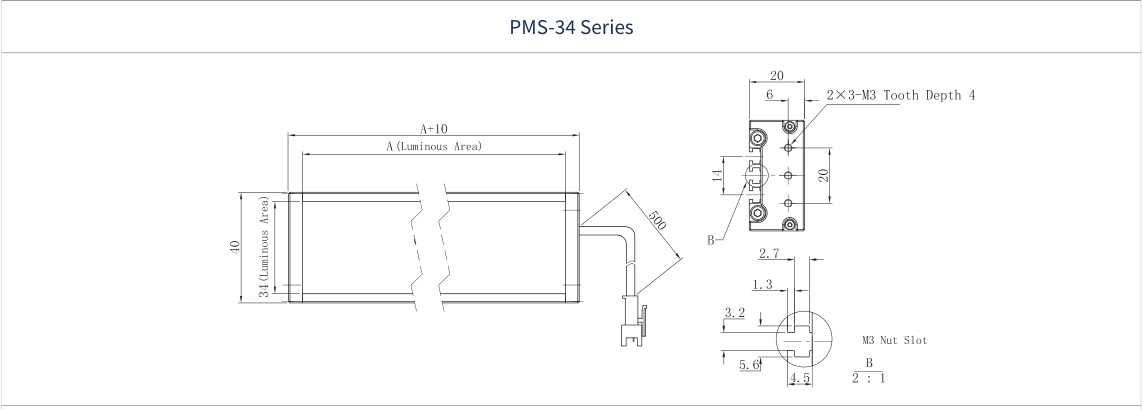

34 mm luminous-width bar series dimension drawing (mm); A is the model luminous length
Bar Illumination
Modular strip lighting with adjustable irradiation angles for larger inspection areas.
| Model | Diameter / luminous area | Angle / working distance | Colors / wavelengths | Power |
|---|---|---|---|---|
| PMS-GBRL-50X14R/W/BComplete specifications → | 50mm × 14mm | — | Red / White / Blue | Red: 0.8WWhite: 1.2WBlue: 1.2W |
| PMS-GBRL-100X14R/W/BComplete specifications → | 100mm ×14mm | — | Red / White / Blue | Red: 1.6WWhite: 2.4WBlue: 2.4W |
| PMS-GBRL-150X14R/W/BComplete specifications → | 150mm × 14mm | — | Red / White / Blue | Red: 2.4WWhite: 3.6WBlue: 3.6W |
| PMS-GBRL-200X14R/W/BComplete specifications → | 200mm × 14mm | — | Red / White / Blue | Red: 3.2WWhite: 4.8WBlue: 4.8W |
| PMS-GBRL-250X14R/W/BComplete specifications → | 250mm × 14mm | — | Red / White / Blue | Red: 8WWhite: 12WBlue: 12W |
| PMS-GBRL-300X14R/W/BComplete specifications → | 300mm × 14mm | — | Red / White / Blue | Red: 9.6WWhite: 14.4WBlue: 14.4W |
| PMS-GBRL-50X34R/W/BComplete specifications → | 50mm × 34mm | — | Red / White / Blue | Red: 1.6WWhite: 2.4WBlue: 2.4W |
| PMS-GBRL-100X34R/W/BComplete specifications → | 100mm × 34mm | — | Red / White / Blue | Red: 3.2WWhite: 4.8WBlue: 4.8W |
| PMS-GBRL-150X34R/W/BComplete specifications → | 150mm × 34mm | — | Red / White / Blue | Red: 4.8WWhite: 7.2WBlue: 7.2W |
| PMS-GBRL-200X34R/W/BComplete specifications → | 200mm × 34mm | — | Red / White / Blue | Red: 6.4WWhite: 9.6WBlue: 9.6W |
| PMS-GBRL-250X34R/W/BComplete specifications → | 250mm × 34mm | — | Red / White / Blue | Red: 8WWhite: 12WBlue: 12W |
| PMS-GBRL-300X34R/W/BComplete specifications → | 300mm × 34mm | — | Red / White / Blue | Red: 9.6WWhite: 14.4WBlue: 14.4W |
Series parameters
| Series spectral options | Red: 620–630 nm or 645–660 nm; green: 525 nm; blue: 470 nm; white: 6500 K; infrared: 850–950 nm; ultraviolet: 365–395 nm |
|---|---|
| Matching controller | PMS-DPI2404-4-RS232T |
| Operating temperature | 0–40 °C |
| Operating humidity | 20–85% RH, non-condensing |
| Accessories | Diffusion plate (standard on some models); extension cable: 1, 3 or 5 m; standard cable length: 0.5 m |
| Expected service life | White light: more than 30,000 h at 25 °C and 50% brightness, to 50% attenuation |
| Customization | Object characteristics, working distance, irradiation angle, color and field of view can be specified on request |
Range dimension drawings
