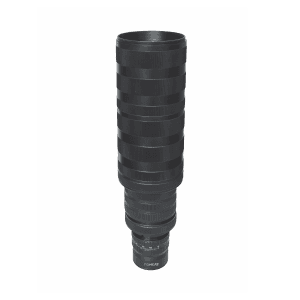

PMS-LLC133-14640M-M72 — 146 mm line-scan lens · 1.33× reference magnification
PMS-LLC133-14640M-M72 146 mm line-scan lens · 1.33× reference magnification in the 16K line-scan lenses range. Focal length 146 mm; iris range 4.0~16.
- Focal Length
- 146 mm
- Iris Range
- 4.0~16
- Image Circle
- φ82 mm
- Lens Mount
- M72
Complete specifications
| Image Circle | φ82 mm |
|---|---|
| Compatible Camera Pixel Size | 5 µm |
| Iris Range | 4.0~16 |
| Focal Length | 146 mm |
| Distortion | <0.001% |
| Relative Illumination | 90% |
| Lens Mount | M72 |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Line-scan Class | 16K |
| Parameter | 1.2× | 1.33× | 1.5× |
|---|---|---|---|
| Working Distance (mm) | 216 | 204 | 192 |
| Conjugate Distance (mm) | 567 | 574 | 586 |

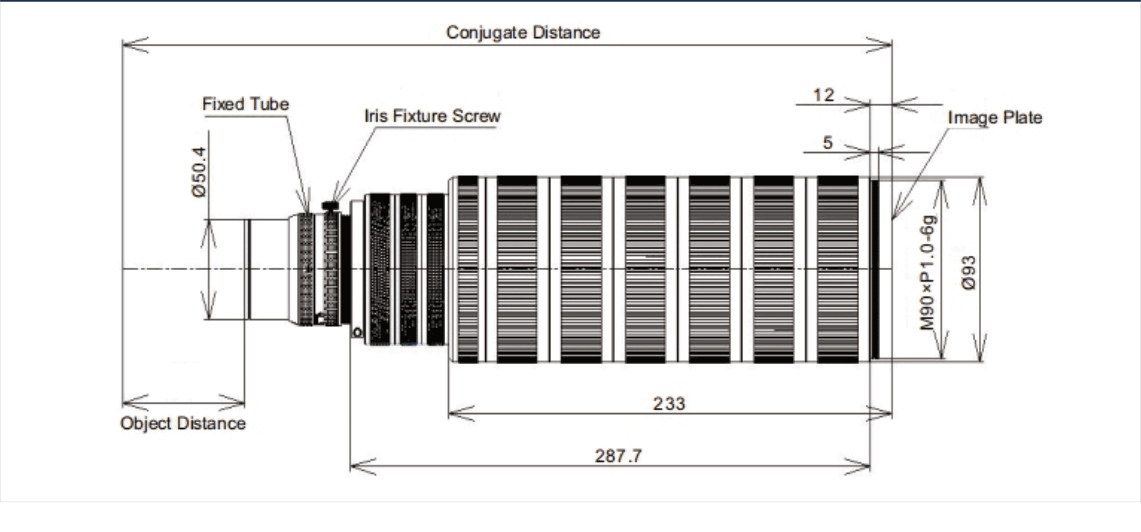

Technical drawings
