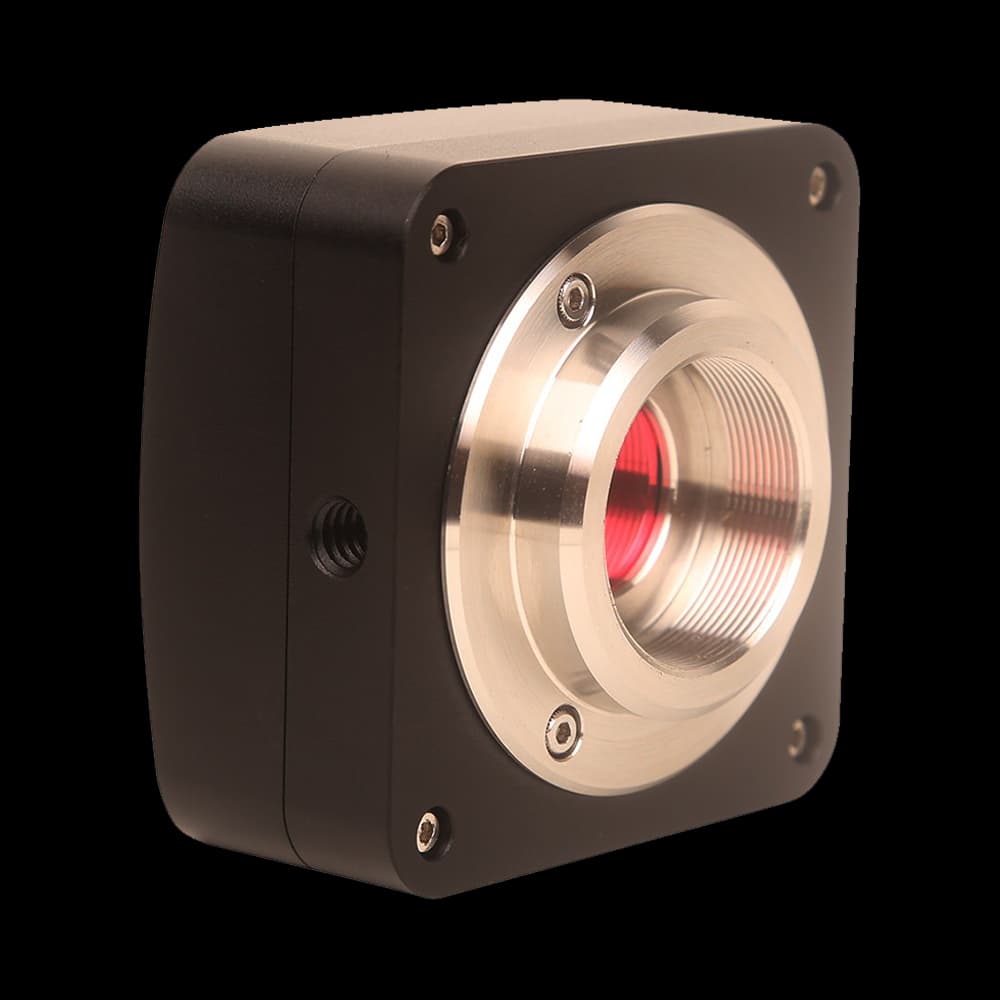

Microscopy Camera
ECMOS02000KPA
ECMOS
- Sensor
- IMX290(C)
- Resolution
- 2.0M (1920×1080)
- Pixel size
- 2.9 µm × 2.9 µm
- Frame rate
- 17 fps @ 1920×1080
- Mount
- C-mount
- Interface
- USB2.0
- Sensor size
- 5.56 mm × 3.13 mm
- Band
- 380–700 nm (visible)
- Shutter
- Rolling
Camera finder
Build a camera shortlist
Showing cameras built around IMX290. Refine the shortlist with your application requirements.
650
Camera models
71
Cooled
216
Global shutter
5
Matched
Results
5 cameras matched
Astronomy Camera
G3M290C
G3M planetary / guide
- Sensor
- Sony IMX290 color CMOS — STARVIS back-illuminated color CMOS
- Resolution
- 2.1 MP (1920 × 1080)
- Pixel size
- 2.9 µm
- Frame rate
- 60 fps
- Mount
- 1.25-inch telescope nosepiece / C-mount
- Interface
- USB 3.0
- Sensor size
- 1/2.8-inch, 5.57 × 3.13 mm
- Band
- 380–690 nm
- Shutter
- Rolling
Astronomy Camera
G3M290M
G3M planetary / guide
- Sensor
- Sony IMX290 monochrome CMOS — STARVIS back-illuminated monochrome CMOS
- Resolution
- 2.1 MP (1920 × 1080)
- Pixel size
- 2.9 µm
- Frame rate
- 60 fps
- Mount
- 1.25-inch telescope nosepiece / C-mount
- Interface
- USB 3.0
- Sensor size
- 1/2.8-inch, 5.57 × 3.13 mm
- Band
- 380–1100 nm
- Shutter
- Rolling
Astronomy CameraDiscontinued
GPCMOS02000KMA
GPCMOS guide
- Sensor
- Sony IMX290 monochrome CMOS — STARVIS back-illuminated monochrome CMOS
- Resolution
- 2.1 MP (1920 × 1080)
- Pixel size
- 2.9 µm
- Frame rate
- 18 fps
- Mount
- 1.25-inch telescope nosepiece / CS-mount
- Interface
- USB 2.0 + ST4
- Sensor size
- 1/2.8-inch, 5.57 × 3.13 mm
- Band
- 380–1100 nm
- Shutter
- Rolling
Astronomy CameraDiscontinued
GPCMOS02000KPA
GPCMOS guide
- Sensor
- Sony IMX290 color CMOS — STARVIS back-illuminated color CMOS
- Resolution
- 2.1 MP (1920 × 1080)
- Pixel size
- 2.9 µm
- Frame rate
- 18 fps
- Mount
- 1.25-inch telescope nosepiece / CS-mount
- Interface
- USB 2.0 + ST4
- Sensor size
- 1/2.8-inch, 5.57 × 3.13 mm
- Band
- 380–690 nm
- Shutter
- Rolling
