TS-OEM / HS-OEM / PD-OEM

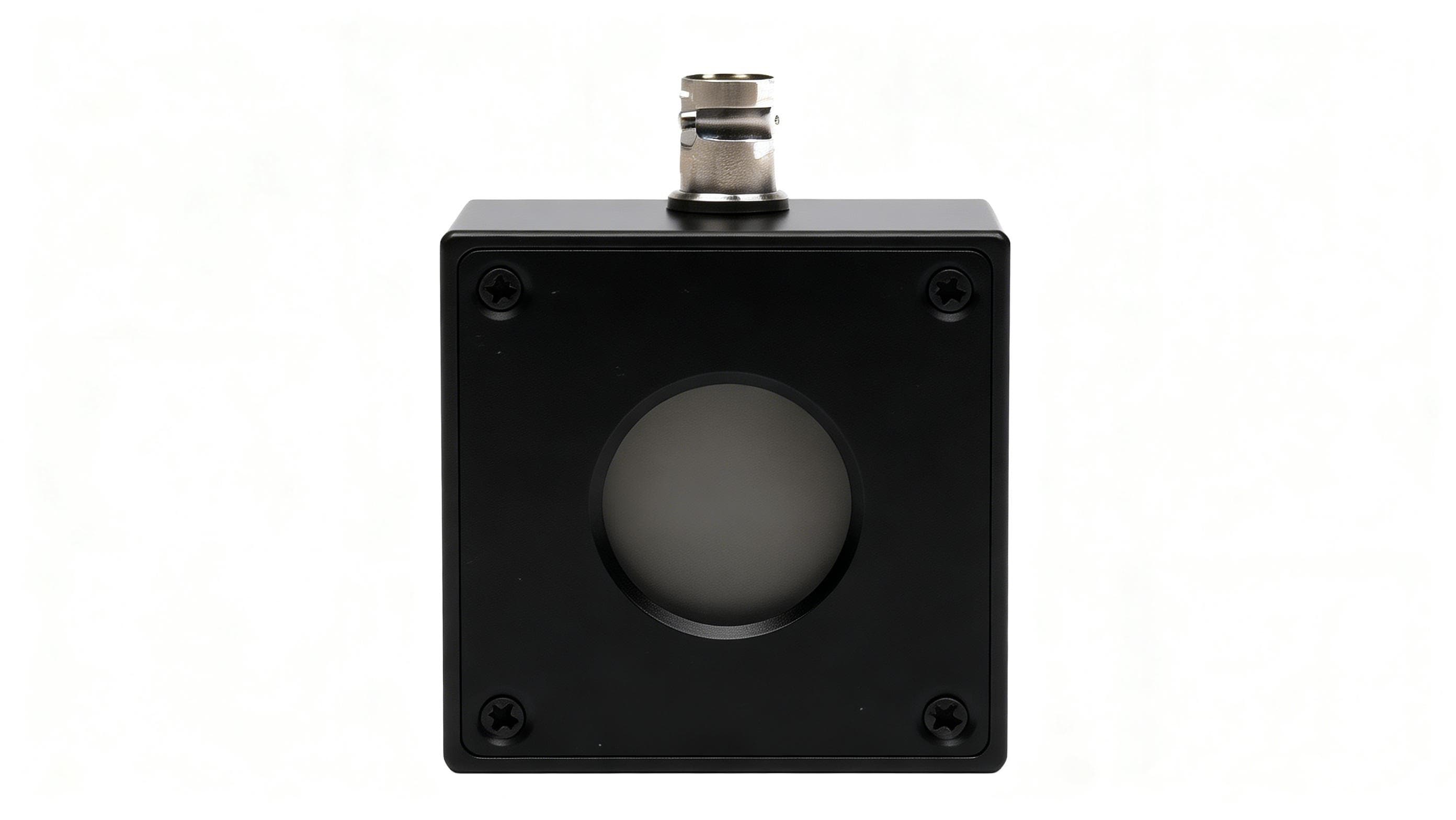

Integrated OEM Laser Power Meters
Compact thermopile and photodiode power-sensor modules for monitoring and feedback inside laser-processing equipment and test systems. Choose the spectral response, active area and electrical output together.
How the measurement works
Integrate the detector head into the optical path, then acquire the calibrated power signal through a selected digital interface or analogue-voltage output. Communication protocols and mechanical packaging are configurable.
Features
- Compact sensor heads
- USB, RS232, RS422, RS485 or analogue output
- USB, DB9 and aviation-style connector options
- Communication protocols and integration support
- Custom mechanical and signal-output configurations
Applications
- Laser-process power monitoring
- Feedback in laser test systems
- Equipment integration and production test
Technical specifications
OEM series
| Parameter | Thermoelectric TS series | Thermoelectric HS series | Photoelectric PD series |
|---|---|---|---|
| Model | |||
| Wavelength range | 0.19-25 μm | 0.19-20 μm | 200-1800 nm |
| Power range | 2 mW - 300 W | 100 μW - 5 W | 1 nW - 3 W |
| Min measurement accuracy (listed) | 0.1 mW | 0.01 mW | 0.001 μW |
| Probe diameter | 22 / 25 mm | 9 mm | 9.5 / 12 mm |
| Maximum average power density | 45 kW/cm² | 1.5 kW/cm² | 20 W/cm² |
| Size (customised) | 51 × 51 × 30 mm | 40 × 40 × 18 mm | Ø30 × 12 mm |
| Port options | USB / RS232 / RS422 / RS485 / analogue voltage | USB / RS232 / RS422 / RS485 / analogue voltage | USB / RS232 / RS422 / RS485 / analogue voltage |
Configure your measurement
Include these details with your enquiry so we can match the instrument and accessories.
- Wavelength, minimum and maximum optical power
- Beam diameter, attenuation and thermal management
- Digital protocol or analogue output range and connector
