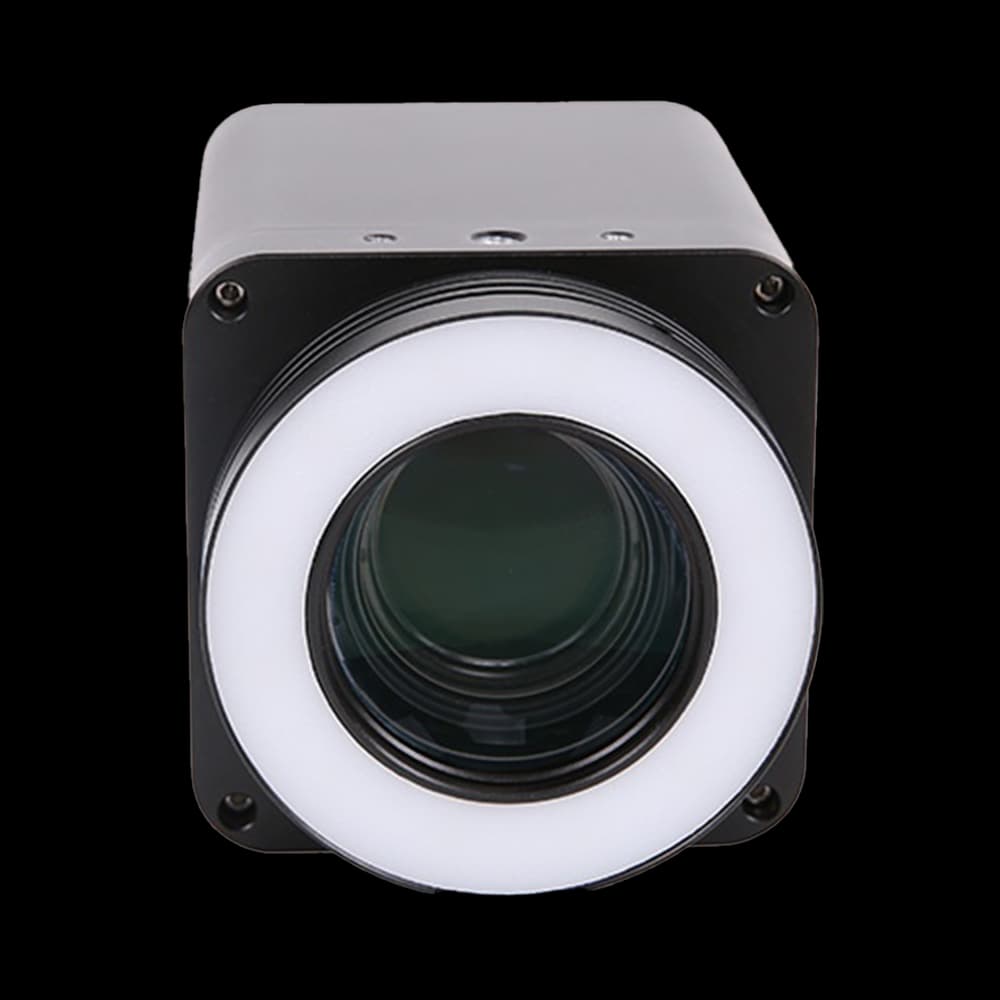

Continuous Zoom Autofocus Digital Microscope
AFDM412
AFDM412 combines 4K imaging, continuous zoom, autofocus, touchscreen control and HDMI/USB3.0/Ethernet output.
- Sensor
- Sony IMX415LQR-C
- Resolution
- 8MP (3840×2160)
- Pixel Size
- 1.45 µm × 1.45 µm
- Frame Rate
- 30 fps@3840×2160
- Interface
- HDMI1.4, USB2.0, LAN, Wi-Fi
Specifications
AFDM412
27 specification rows
Key Parameters
| Product Model | AFDM412 |
|---|---|
| Product Series | Continuous Zoom Autofocus Digital Microscope |
Sensor Parameters
| Sensor Model | Sony IMX415LQR-C |
|---|---|
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.39 mm (calculated) |
| Pixel Size | 1.45 µm × 1.45 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
Optical Parameters
| Lens Type | EMZO-18XA-250 integrated lens |
|---|---|
| Optical Zoom | 18× (0.0218X~0.392X) |
| Working Distance | 205-255 mm (standard 250 mm) |
| Field of View | Low magnification: 255×145 mm, High magnification: 14.2×8.0 mm |
| Automatic Focus | Supported |
Performance Parameters
| Frame Rate | 30 fps@3840×2160 |
|---|---|
| Output Interfaces | HDMI1.4, USB2.0, LAN, Wi-Fi |
| Storage Support | SD card, USB flash drive |
| Software Support | XCamView, ToupView, ToupLite |
Physical Parameters
| Power Supply | DC 12 V / 3 A |
|---|---|
| Dimensions | 80 × 80 × 122 mm |
| Weight | 0.75 kg |
Environmental Parameters
| Operating Temperature | 10 °C ~ +50 °C |
|---|---|
| Storage Temperature | 20 °C ~ +60 °C |
| Operating Humidity | 30 ~ 80% RH |
| Storage Humidity | 10 ~ 60% RH |
Other Information
| OS Support | Windows, Linux, macOS, Android, iOS |
|---|---|
| Certification | CE, FCC, RoHS |
