Showing cameras built around MN34230. Refine the shortlist with your application requirements.

646
Camera models
75
Cooled
216
Global shutter
5
Matched

Results

5 cameras matched

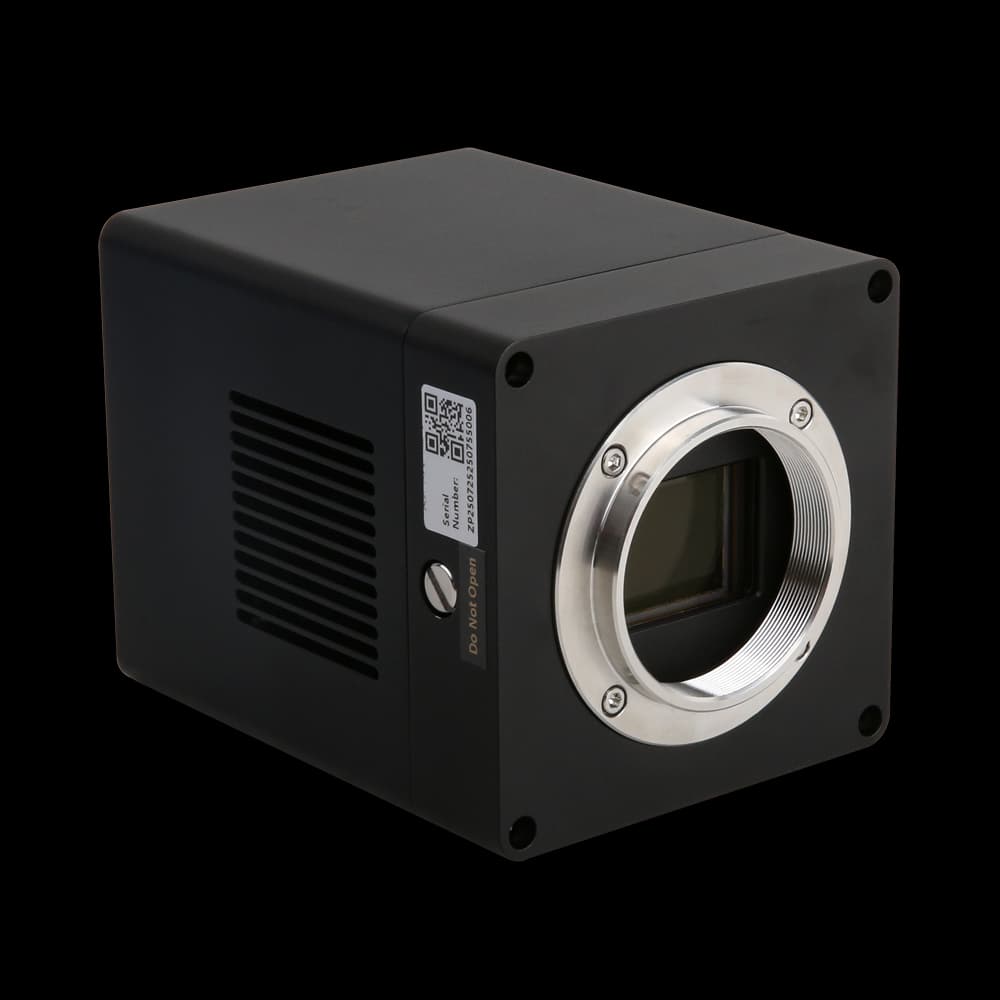

MTR3CMOS16000KMA
Low-Light / Cooled CameraCooled
MTR3CMOS16000KMA

MTR3CMOS

Sensor
MN34230ALJ (M)
Resolution
16MP (4648×3506)
Pixel size
3.8 µm × 3.8 µm
Frame rate
22.5 fps @ 4648×3506; 43 fps @ 2304×1750; 48 fps @ 1536×1168
Mount
C-mount
Interface
USB3.0
Sensor size
17.6 mm × 13.3 mm
Band
380–700 nm (visible)
Shutter
Rolling
MTR3CMOS16000KPA
Low-Light / Cooled CameraCooled
MTR3CMOS16000KPA

MTR3CMOS

Sensor
MN34230PLJ (C)
Resolution
16MP (4640×3506)
Pixel size
3.8 µm × 3.8 µm
Frame rate
6 fps @ 4640×3506; 20 fps @ 2304×1750; 48 fps @ 1536×1160
Mount
C-mount
Interface
USB3.0
Sensor size
17.6 mm × 13.3 mm
Band
380–700 nm (visible)
Shutter
Rolling
U3CMOS16000KMB
Microscopy Camera
U3CMOS16000KMB

U3CMOS

Sensor
MN34230ALJ (M)
Resolution
16M (4640×3506)
Pixel size
3.8 µm × 3.8 µm
Frame rate
22 fps @ 4640×3506; 36 fps @ 3840×2160; 43 fps @ 2304×1750; 43 fps @ 1920×1080; 49 fps @ 1536×1168
Mount
C-mount
Interface
USB3.0
Sensor size
17.60 mm × 13.30 mm
Band
380–700 nm (visible)
Shutter
Rolling
U3CMOS16000KPB
Microscopy Camera
U3CMOS16000KPB

U3CMOS

Sensor
MN34230PLJ (C)
Resolution
16M (4648×3506)
Pixel size
3.8 µm × 3.8 µm
Frame rate
6.0 fps @ 4648×3506; 15.0 fps @ 2304×1750; 30.0 fps @ 1536×1168
Mount
C-mount
Interface
USB3.0
Sensor size
17.60 mm × 13.30 mm
Band
380–700 nm (visible)
Shutter
Rolling
U3ISPM16000KPB (Discontinued)
Microscopy Camera
U3ISPM16000KPB (Discontinued)

U3ISPM

Sensor
MN34230 (C)
Resolution
16M (4640×3506)
Pixel size
3.8 µm × 3.8 µm
Frame rate
22 fps @ 4640×3506; 30 fps @ 3360×2526; 43 fps @ 2304×1750; 49 fps @ 1536×1168
Mount
C-mount
Interface
USB3.0
Sensor size
17.60 mm × 13.30 mm
Band
380–700 nm (visible)
Shutter
Rolling
