Showing cameras built around IMX383. Refine the shortlist with your application requirements.

646
Camera models
75
Cooled
216
Global shutter
2
Matched

Results

2 cameras matched

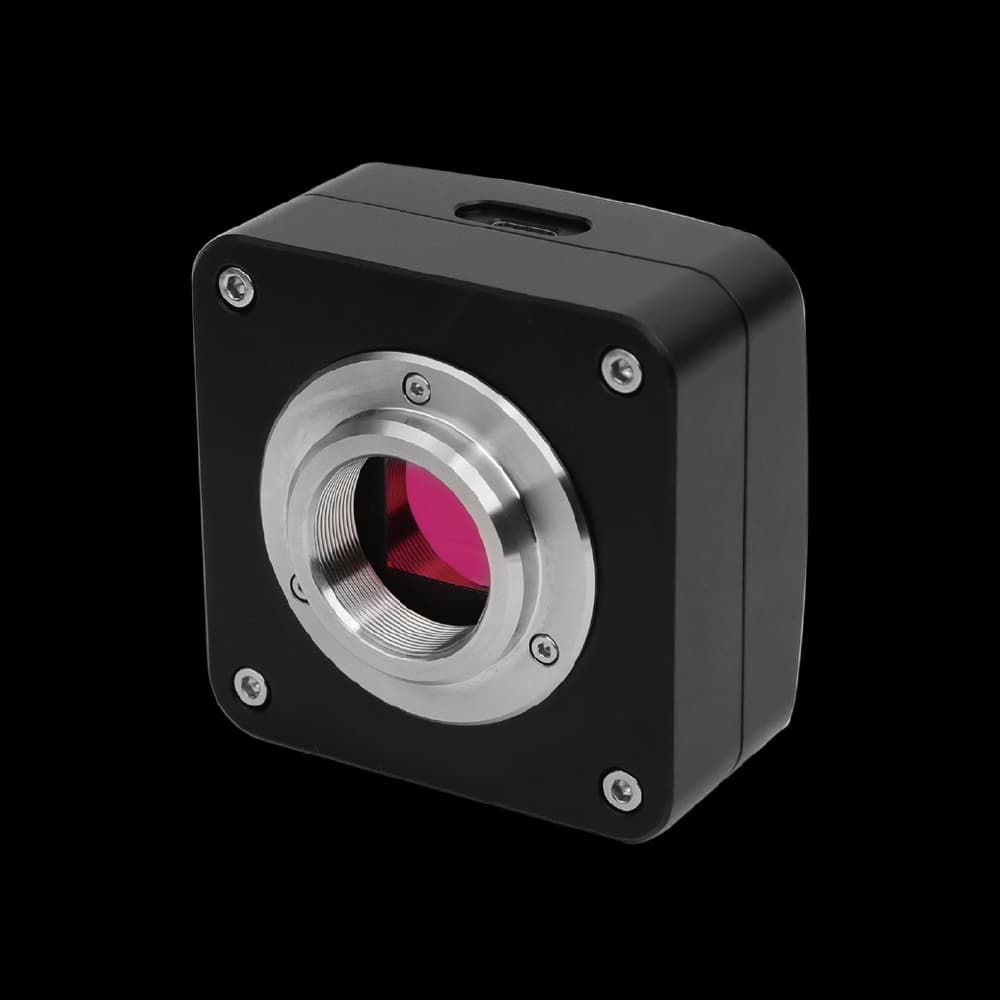

E10ISPM20000KPA
Microscopy CameraMatch 1
E10ISPM20000KPA

E10ISPM

Sensor
IMX383 (C,RS)
Resolution
20M (5472×3648)
Pixel size
2.4 µm × 2.4 µm
Frame rate
49 fps @ 5472×3648(8-bit); 24 fps @ 5472×3648(12-bit); 49 fps @ 2736×1824(8-bit); 24 fps @ 2736×1824(12-bit); 120 fps @ 1824×1216(8-bit); 120 fps @ 1824×1216(12-bit)
Mount
C-mount
Interface
USB3.2 Gen2 (Type-C)
Sensor size
13.13 mm × 8.75 mm
Band
380–700 nm (visible)
Shutter
Rolling

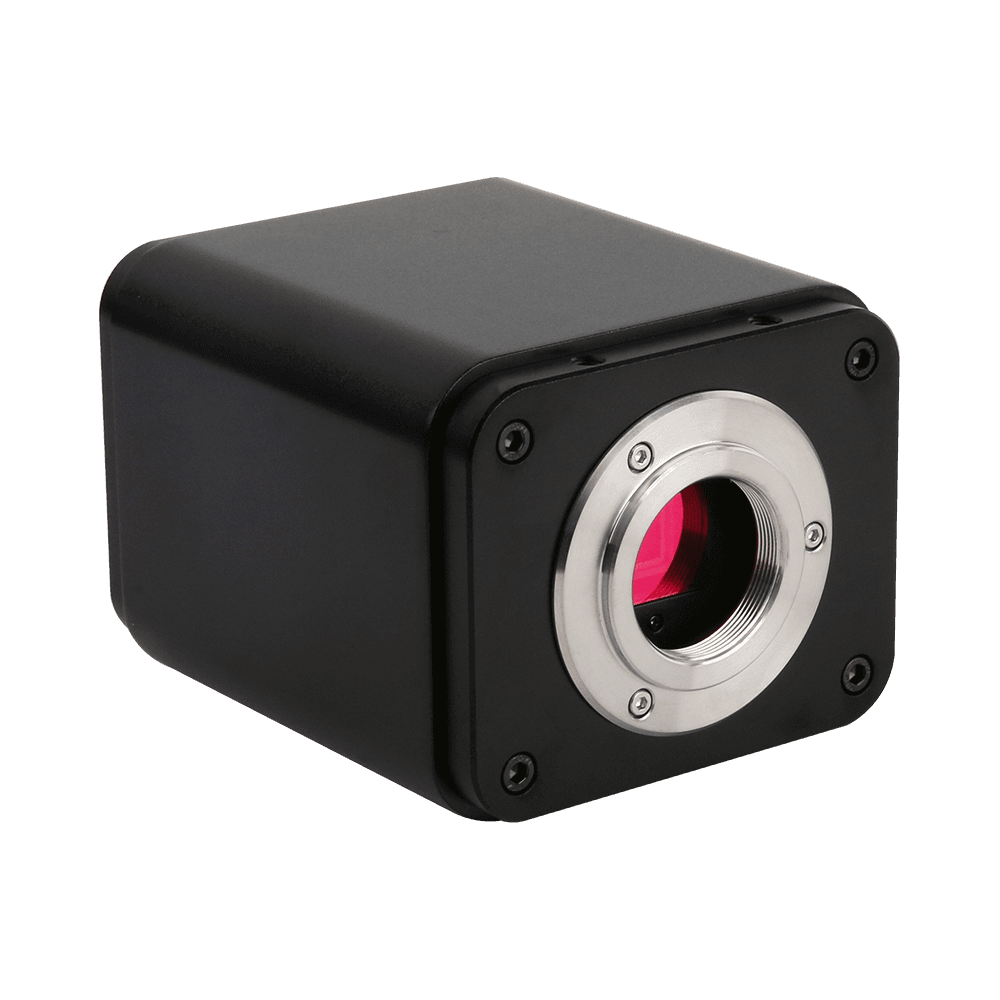

X8CAM4K16MPA
Multi-Interface Camera
X8CAM4K16MPA

X8CAM4K

Sensor
Sony IMX383 (C)
Resolution
16 MP (5440 × 3060)
Pixel size
2.4 µm × 2.4 µm
Frame rate
25 Hz @ 5440×3060, 60 Hz @ 3840×2160, 60 Hz @ 1920×1080
Mount
C-mount
Interface
HDMI2.0, USB3.0, LAN, Wi-Fi
Sensor size
1/1.1" (13.06 × 7.34 mm)
Band
380–700 nm (visible)
Shutter
Rolling
